Suitable for 2"–10" drain lines｜3/4 HP motor｜Flexicore® cables 5/8"×150' and 3/4"×125'｜Heavy-duty variable-speed feed up to 20 ft/min｜10" semi-pneumatic wheels.
Powerful, durable, and easy to transport, built to clear roots, grease, sand, scale, and other tough blockages.
Powerful, durable, and easy to transport, built to clear roots, grease, sand, scale, and other tough blockages.
Product Features
- 3/4 HP Motor: Drives long cable runs and handles roots, grease, sand, and scale.
- Heavy-Duty Variable Feed: Feeds and retrieves cable up to 20 ft/min.
- Flexitube™ Guide Tube: Reduces cable tangling and extends cable life.
- Rugged Aluminum Frame: Impact-resistant frame for demanding jobsite use.

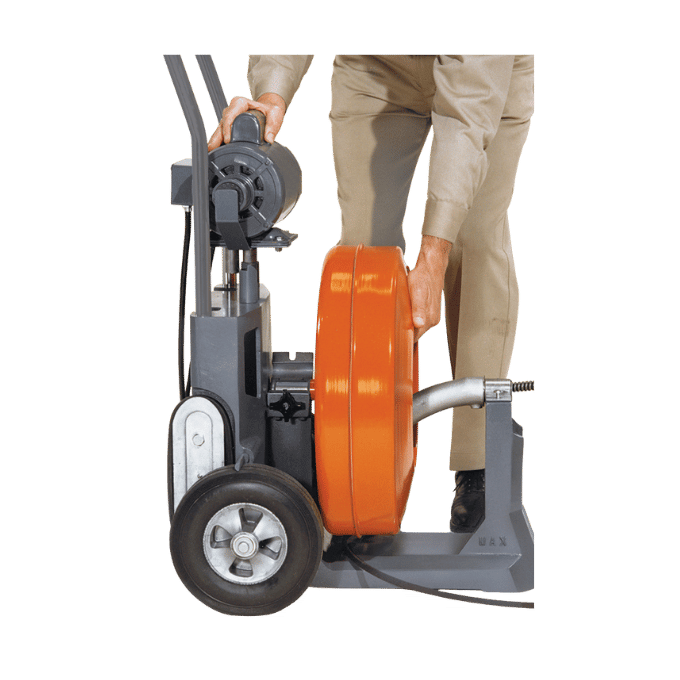

- Large Drum Capacity: Makes cable replacement and management easier.
- 10" Semi-Pneumatic Wheels: Moves smoothly over rough terrain.
- V-Belt Stair Climber: Easier movement over stairs and thresholds.

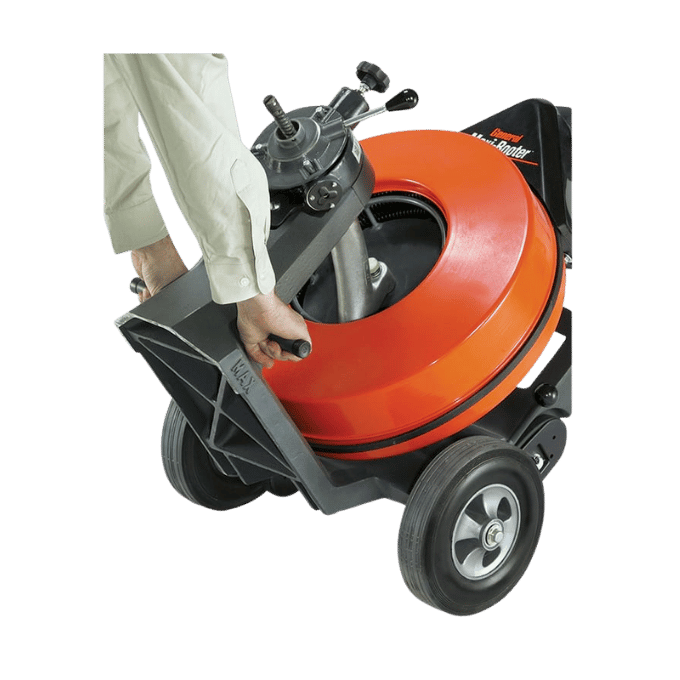

- Loading Assist Design: Front wheels and handles help slide the unit into service vehicles.
- Built-In Toolbox: Convenient storage for tools and accessories.
- Pneumatic Foot Switch: Simple operation while keeping both hands on the cable.
- GFCI Protection: Improves electrical safety on site.
Model Specifications
Product Details
Technical Data
Product Specifications

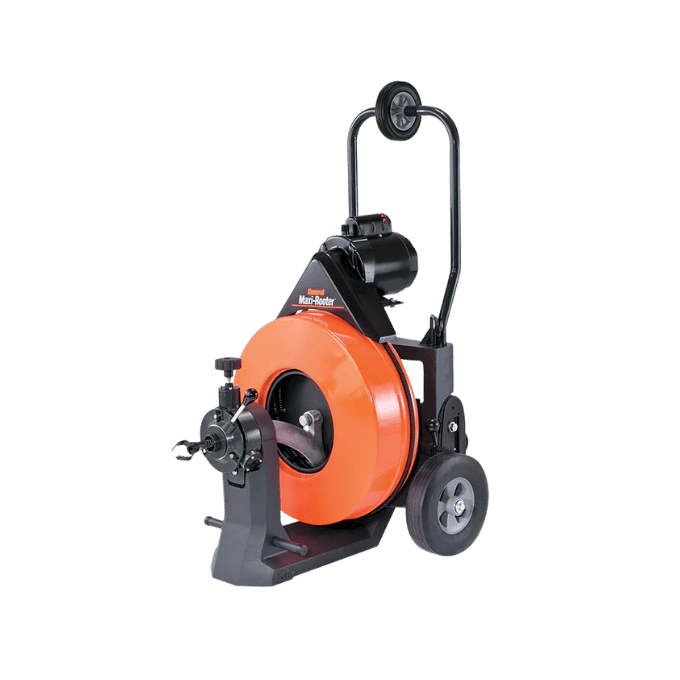

Maxi-Rooter is a professional drain cleaning machine designed for large drainage systems, covering 2"–10" drain lines. It can be used with 5/8" or 3/4" Flexicore® cables, making it suitable for large commercial, industrial, and high-load drainage system cleaning.
Cleaning Capacity
Suitable for 2"–10" drain lines
5/8" Cable
Up to 150', suitable for clearing 3"–6" drain line blockages
3/4" Flexicore® Cable
Up to 125', suitable for clearing 6"–10" drain line blockages
Large Drain Cleaning, Built for High-Load Blockages
Different cables and cutter heads can be selected according to pipe diameter, blockage type, and cleaning distance. Especially suitable for roots, grease, and solid obstructions.
Cable Models
Cable Models
Choose 5/8" or 3/4" inner-core cables according to pipe size and cleaning distance, with multiple length options available.
5/8" Inner-Core Cable
122010｜25EM4
5/8" × 25' inner-core cable
122020｜50EM4
5/8" × 50' inner-core cable
122030｜75EM4
5/8" × 75' inner-core cable
122040｜100EM4
5/8" × 100' inner-core cable
3/4" Inner-Core Cable
122050｜25EM5
3/4" × 25' inner-core cable
122060｜50EM5
3/4" × 50' inner-core cable
122070｜75EM5
3/4" × 75' inner-core cable
122080｜100EM5
3/4" × 100' inner-core cable
Cutters
Cutter Accessories
Suitable for 5/8" and 3/4" cables. Cutter heads can be selected according to blockage type, including leader tubes, spear head cutters, side cutters, U-cutters, heavy-duty sawtooth cutters, root augers, and adjustable side cutters.
26" leader tube, LE2-33" also available
Spear head cutter
3" side cutter
4" side cutter, 2" and 6" also available

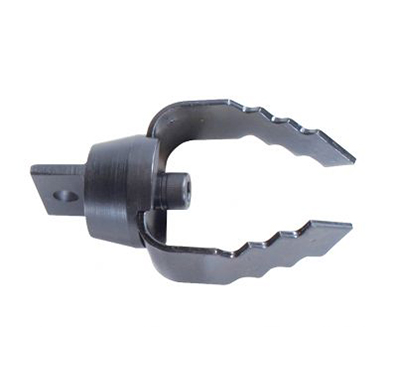

2" U-cutter, 3" and 4" also available
3" heavy-duty sawtooth cutter, 4", 6", and 8" also available
4" spiral sawtooth cutter
Long retrieving auger
3" heavy-duty side cutter, 4" also available
Root auger
3"–6" heavy-duty expanding cutter
Five-blade cutter
4"–6" adjustable side cutter
Applications
Applications
Suitable for large drain lines and commercial or industrial sites, especially for handling roots, grease, and solid blockages.
Large Drain Cleaning
Suitable for cleaning 3"–10" drain lines, especially effective for roots, grease, and other solid obstructions.
Commercial Drainage Systems
Suitable for large commercial districts, restaurants, public facilities, and commercial building drainage maintenance.
Industrial Applications
Can be used in industrial areas and high-load drainage lines, providing powerful and efficient cleaning capability.
High-Load Blockage Removal
Can be matched with different cutter heads to handle roots, grease buildup, and other solid obstructions.
Video
Product Video
Watch the operation video to understand how Maxi-Rooter works in real drain cleaning applications.
