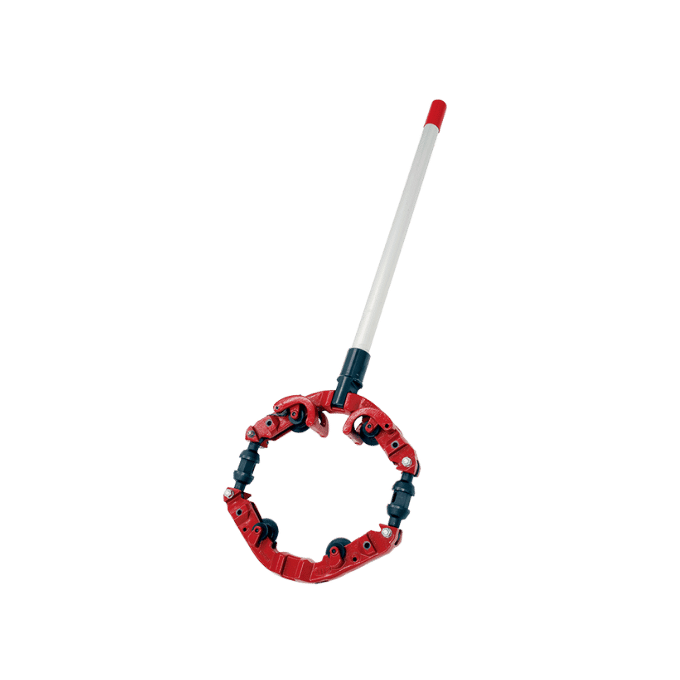

REED Rotary Cutter LCRC
Cutting capacity 6"–16" (159–462 mm)｜Suitable for steel, stainless steel, ductile cast iron, and cast iron pipes｜Designed for large-diameter pipes and confined spaces｜Requires only approx. 10 cm clearance｜Cuts with 45°–60° handle rotation.
Product Features
- Large-Diameter Cutting Capacity: Suitable for 6"–16" pipes for large pipeline installation and repair.
- Confined-Space Application: Requires only approx. 10 cm clearance around pipes up to 16".
- Small-Angle Fast Cutting: Cuts quickly with only 45°–60° handle rotation.
- One Cutter Wheel for All Sizes: The same cutter wheel fits the full series, reducing spare part complexity and cost.
- RCX High-Performance Cutter Wheel: Cuts steel pipe wall thickness up to 19.5 mm.
- Heavy-Duty Frame: Rugged construction for long-term, high-load use.
- Long-Handle Leverage: Provides better cutting force with less operator effort.
- Excellent for Ductile Cast Iron: Especially effective on ductile cast iron pipes, which break cleanly once the cut reaches sufficient depth.
- Multi-Environment Use: Suitable for trenches, underwater work, overhead piping, and restricted jobsite areas.
Model Specifications
Product Details
Technical Data
Product Specifications
This large-diameter rotary pipe cutter is suitable for cutting 6"–16" pipes, with a working range of 159–462 mm. It supports steel pipes, stainless steel pipes, ductile cast iron pipes, and cast iron pipes. Maximum cutting thickness reaches 19.5 mm when used with the RCX cutting wheel. With only approx. 10 cm clearance requirement and 45°–60° rotation angle, it is ideal for large-diameter pipe repair, municipal work, and confined-space cutting.
Cutting Capacity
6"–16" / 159–462 mm
Applicable Materials
Steel pipe, stainless steel pipe, ductile cast iron pipe, and cast iron pipe
Cutting Thickness
Up to 19.5 mm, suitable for RCX cutting wheel
Clearance Requirement
Only approx. 10 cm clearance required
Rotation Angle
45°–60°
Application Scene
Large pipe repair, municipal projects, drainage pipes, water supply pipes, and confined environments
Cuts Large-Diameter Pipes with Only 10 cm Clearance
The key value of this tool is compatibility with both large pipe sizes and tight working spaces. Large-diameter pipe cutting is often limited by insufficient clearance around the pipe. This cutter requires only approx. 10 cm clearance and works with a 45°–60° rotation angle, making it suitable for municipal repair, drainage lines, water supply lines, and dense existing pipework.
Cutting Wheels
Cutting Wheel Specifications
Cutting wheels should be selected according to pipe material and wall thickness. Steel / stainless steel, cast iron / ductile cast iron, heavy-duty cast iron, and extra-thick steel pipes require the correct cutting wheel to maintain cutting efficiency and reduce premature wear.
3530｜RCS8-36
Wall thickness ≤ 16.1 mm｜Steel and stainless steel
3535｜RCI8-30
Wall thickness ≤ 12.7 mm｜Cast iron and ductile cast iron
3545｜RCDX
Wall thickness ≤ 13.5 mm｜Heavy-duty cast iron and ductile cast iron
3550｜RCX
Wall thickness ≤ 20.3 mm｜Extra-thick steel and stainless steel
For Large-Diameter Cutting, Material and Wall Thickness Matter More Than Diameter Alone
Steel, stainless steel, cast iron, and ductile cast iron have different cutting behaviors; heavy-duty and extra-thick pipe walls also require different wheels. Selecting only by pipe diameter may cause difficult feed, rapid wheel wear, or unstable cut quality. Choose RCS, RCI, RCDX, or RCX according to actual material, thickness, and cutting load.
Features
Product Features
Designed around large-diameter cutting capacity, low-clearance operation, multi-material compatibility, and high-load cutting wheel options for municipal, construction, repair, and large-pipe applications.
Large-Diameter Cutting
Cuts 6"–16" pipes, suitable for large steel, stainless steel, and cast iron pipework.
Low Clearance Operation
Requires only approx. 10 cm clearance around the pipe, suitable for trenches, underwater work, or tight spaces.
Small Rotation Angle
45°–60° rotation angle reduces required working space during large-pipe cutting.
Multi-Material Use
Supports steel, stainless steel, cast iron, and ductile cast iron pipes.
High-Load Cutting
With the RCX cutting wheel, it can handle thicker steel and stainless steel pipes.
Jobsite Repair Ready
Suitable for pipe repair, maintenance, installation, and existing pipeline replacement.
Applications
Applications
Suitable for cutting large-diameter steel, stainless steel, cast iron, and ductile cast iron pipes. Widely used in pipe repair, construction, municipal engineering, drainage pipes, water supply facilities, installation and maintenance, trenches, underwater work, and confined environments.
Pipe Repair
Suitable for repair and maintenance of large-diameter steel, stainless steel, and cast iron pipes.
Construction Work
Commonly used for large pipeline cutting on construction sites and engineering projects.
Municipal Engineering
Especially suitable for installation, maintenance, and replacement of drainage and water supply facilities.
Confined Environments
Suitable for tight working conditions such as drainage trenches, underwater work, or dense pipeline areas.
