REMS Industrial-Micro-Inspection-CamScope-S

REMS_inspection_Industrial-Micro_CamScope-S_175138
REMS_inspection_Industrial-Micro_CamScope-S_175138_1
Germany
REMS
CamScope S

Industrial Micro Inspection

Camera sizes 5.2 mm / 9 mm / 16 mm｜CMOS camera｜Focus range 10–350 mm｜IP67 waterproof rating｜Resolution 704×576 / 640×480｜30 fps｜3.5" TFT-LCD｜3× digital zoom｜Photo / video / audio recording｜MicroSD storage + USB transfer.
Product Features
  • Multiple Camera Sizes: 5.2 mm, 9 mm, and 16 mm options for different inspection spaces.
  • CMOS Color Imaging: Provides clear inspection images for pipe and equipment condition assessment.
  • IP67 Waterproof Design: Camera head is suitable for damp areas, pipe interiors, and jobsite inspection.
  • 3.5" TFT-LCD Display: Allows real-time image viewing with easy handheld operation.
  • 3× Digital Zoom: Enlarges details to inspect cracks, blockages, wear, or foreign objects.
  • Photo / Video / Audio Recording: Records the inspection process for repair work and reporting.
  • MicroSD Storage: Saves inspection files directly for easier management and backup.
  • USB Transfer: Connects to a PC or laptop for quick export of images and videos.
  • Lightweight Handheld Design: Easy to carry between jobsites and suitable for confined-space field inspection.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
175138
CamScope S Set 5.2-1

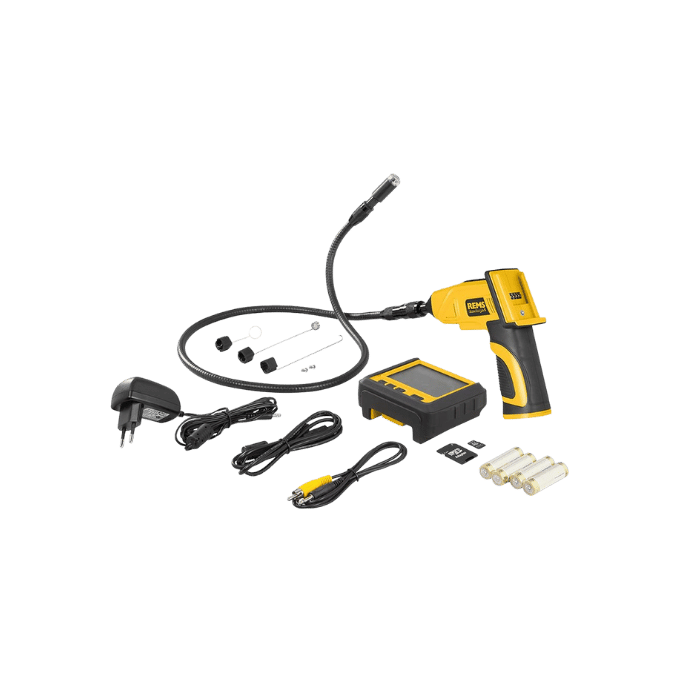

Control unit with 3.5" TFT-LCD color display; Camera system: 5.2 mm color camera, 640 × 480 resolution, with 1 m flexible snake tube; Included: MicroSD memory card, four 1.5V AA LR6 lithium batteries, charger, USB cable, video output cable, and tool case.
0.7 kg
175135
CamScope S Set 9-2
Control unit with 3.5" TFT-LCD color display; Camera system: 9 mm color camera with switchable 180° / 90° viewing angles, 640 × 480 resolution, with 2 m flexible snake tube; Included: MicroSD memory card, four 1.5V AA LR6 lithium batteries, charger, USB cable, video output cable, and tool case.
0.8 kg
175130
CamScope S Set 16-1
Control unit with 3.5" TFT-LCD color display; Camera system: 16 mm color camera, 704 × 576 resolution, with 1 m flexible snake tube; Included: MicroSD memory card, four 1.5V AA LR6 lithium batteries, charger, USB cable, video output cable, and tool case; Special accessories: mirror, hook, and magnet.
0.9 kg
175105
0.9 m extension cable, expandable up to a maximum length of 4.5 m.

Product Details

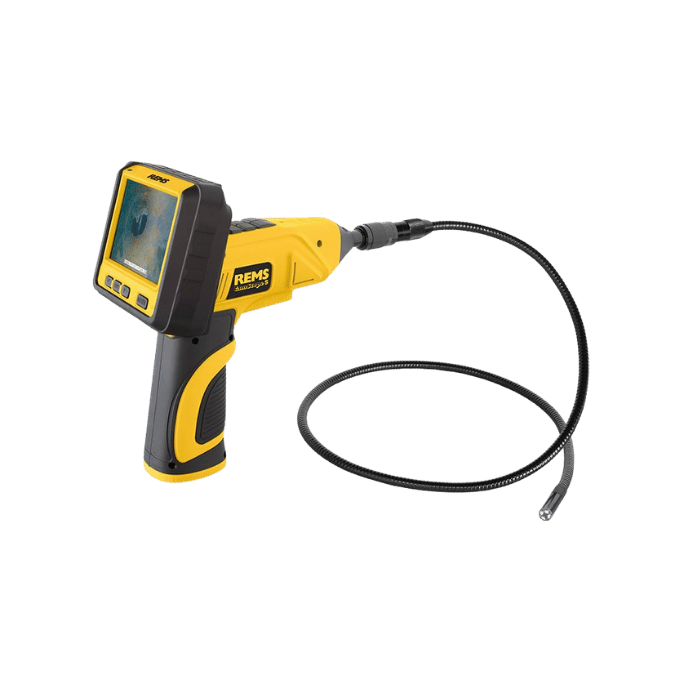

REMS CamScope S Industrial Endoscope
Overview

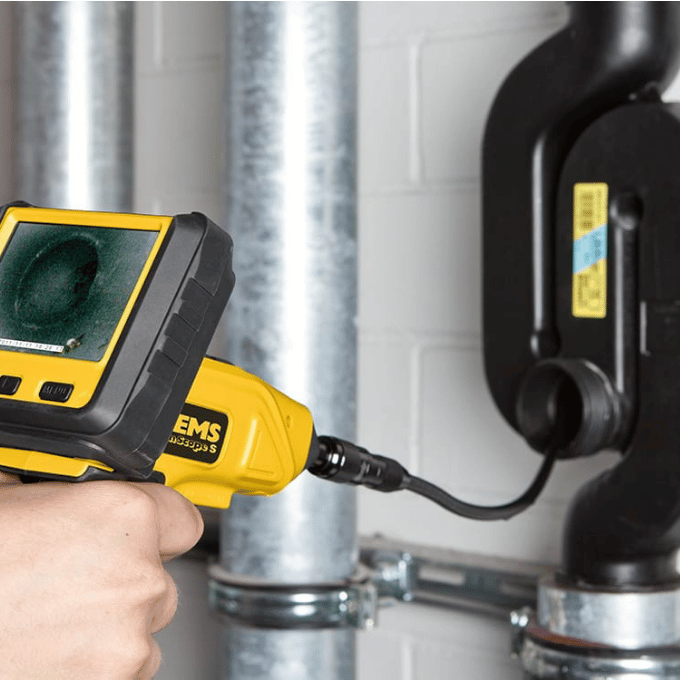

REMS CamScope S Industrial Endoscope

REMS CamScope S is a professional industrial endoscope system designed for inspecting ventilation openings, cavities, shafts, pipes, and other confined spaces. The system offers 16mm, 9mm, and 5.2mm camera options, allowing users to select the right camera according to access space, viewing angle, and close-focus inspection needs. With a 3.5-inch TFT-LCD display and wireless image transmission, it supports on-site damage analysis, condition inspection, and image data management.

Specifications
Product Specifications
Product Type
Industrial endoscope system
Display
3.5-inch TFT-LCD
Display Resolution
320 × 240
Video System
PAL / NTSC
Receiving Frequency
2,414 MHz, 2,432 MHz, 2,450 MHz, 2,468 MHz
Image Rate
27 MB per minute
Frame Rate
30 frames per second
Display Size
105 × 90 × 42 mm
Display Weight
240 g
Confined-Space Inspection Is Not Only About Reaching Inside — It Is About Choosing the Right Camera and Seeing Details Clearly

Different inspection conditions require different camera diameters, viewing angles, and focus ranges. CamScope S offers 16mm, 9mm, and 5.2mm camera options for general spaces, narrower access points, and close-range detail inspection, helping operators perform damage analysis and condition assessment more efficiently.

Camera Options

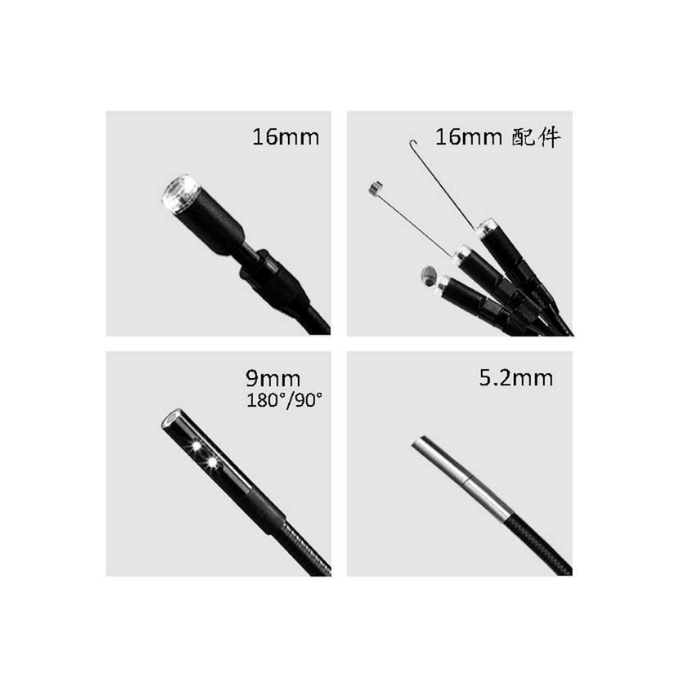

Camera Specifications
All three camera options use CMOS image sensors and feature IP67 waterproof protection. Users can select the appropriate camera based on access space, inspection distance, and required viewing angle.
16mm Camera

CMOS image sensor; 704 × 576 pixels (PAL); 50° horizontal viewing angle; 60–350 mm focus range; 280 g weight; IP67 waterproof rating.

9mm Camera

CMOS image sensor; 640 × 480 pixels; 36° horizontal viewing angle; 20–100 mm focus range; 190 g weight; IP67 waterproof rating.

5.2mm Camera

CMOS image sensor; 640 × 480 pixels; 63° horizontal viewing angle; 10–50 mm focus range; 30 g weight; IP67 waterproof rating.

REMS CamScope S industrial endoscope application
Features
Product Features
Built around multiple camera options, IP67 waterproof protection, TFT-LCD display, PAL / NTSC support, and wireless image reception, CamScope S is suitable for maintenance inspection, damage analysis, and confined-space image diagnosis.
Three Camera Options

16mm, 9mm, and 5.2mm cameras allow flexible selection according to access space and inspection distance.

IP67 Waterproof Rating

The camera heads feature IP67 protection, suitable for damp areas, pipe interiors, and general industrial inspection.

3.5-Inch TFT-LCD Display

Allows real-time viewing on site for condition checking, abnormality detection, and repair assessment.

PAL / NTSC Support

Supports common video systems, increasing output compatibility and data flexibility.

Multiple Receiving Frequencies

Supports 2,414 / 2,432 / 2,450 / 2,468 MHz receiving frequencies for on-site image transmission.

Lightweight Display

The display weighs approx. 240 g, making it easy to carry for mobile inspection and multi-point field work.

Applications
Applications
Suitable for ventilation openings, cavities, shafts, pipes, equipment interiors, and other confined spaces. It can be used for damage analysis, condition inspection, data recording, and repair assessment.
Confined-Space Viewing

Suitable for ventilation openings, cavities, shafts, pipes, and other hard-to-see locations.

Damage Analysis

Helps inspect internal equipment, pipe interiors, and structural spaces for damage or abnormal conditions.

Pipe Inspection

Can be used for small pipes, mechanical piping, and other locations that cannot be directly observed.

Pre-Repair Diagnosis

Helps confirm problem locations before disassembly or repair, reducing unnecessary work and misjudgment.

Data Recording and Analysis

Supports condition inspection, analysis, data storage, and transmission for easier follow-up management.

Field Inspection

Suitable for quick checks in industrial equipment, piping, building spaces, and repair sites.
