KS Self-Leveling Industrial Pipe Inspection Camera 300SL
Home- Products
- Specialty Tools & Accessories
- Discontinued
- Self-Leveling Industrial Pipe Inspection Camera
7" touchscreen｜640 × 480 resolution｜Ø30 mm 150° wide-angle self-leveling camera｜Suitable for 2"–4" pipes｜Inspection distance up to 30 m｜10 adjustable LEDs｜NTSC / PAL recording｜IP57 splash-resistant monitor｜10 m push cable.
Product Features
- 7" Anti-Glare Touchscreen: Clear and bright display with intuitive touch operation for real-time inspection.
- Self-Leveling Camera: Ø30 mm color camera keeps the image upright for easier interpretation.
- 150° Wide-Angle View: Provides wider inspection coverage for blockages, cracks, leaks, and pipe damage.
- 10 LED Illumination: Adjustable white LEDs adapt to different pipe lighting conditions.
- Long Inspection Range: Supports inspection distance up to 30 m for general drain pipe inspection.
- Real-Time Information Display: Shows date, time, cable insertion depth, and battery level.
- Multi-Function Recording: Supports photo capture, video recording, and up to 5× image zoom.
- NTSC / PAL Compatible: Video recording supports NTSC and PAL formats for playback and archiving.
- Splash / Water Protection: IP57 splash-resistant monitor, with push cable and camera suitable for damp pipe environments.
- Portable Reel Design: Compact reel makes the push cable easy to store, transport, and deploy on site.
Model Specifications
Product Details
Product Overview

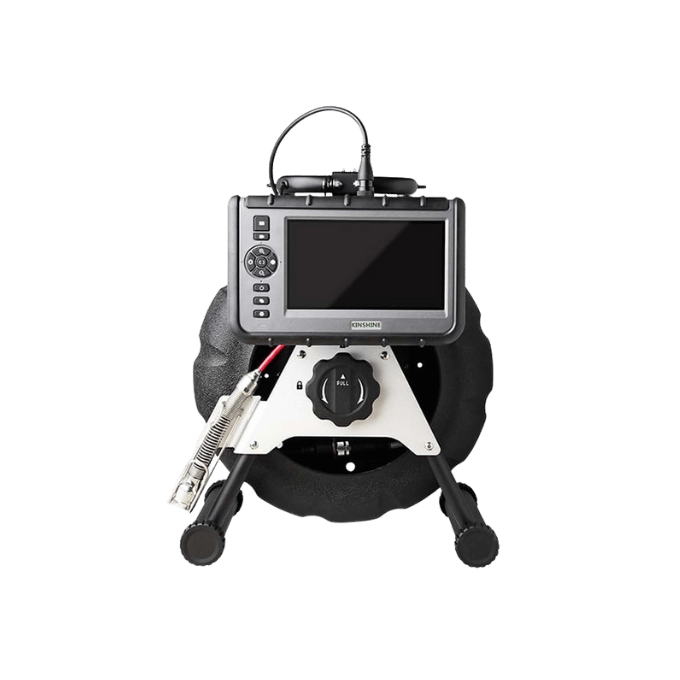

KS300L Pipe Inspection Camera System
This professional pipe inspection camera system is designed for 2"–4" drain lines, with an inspection range of up to 30 meters. It features a 7-inch LCD color touchscreen, Ø30mm self-leveling color camera head, 150° wide-angle view, and 10 adjustable white LEDs to help operators inspect blockages, damage, leaks, wear, cracks, and other internal pipe conditions. It is suitable for plumbing repair, construction work, post-cleaning inspection, and new pipe installation acceptance.
Product Type
7-inch touchscreen pipe inspection camera system
Inspection Capacity
Suitable for 2"–4" drain lines, up to 30 m
Display
7" LCD color touchscreen, anti-glare, 640 × 480 resolution
Camera Diameter
Ø30mm
Viewing Angle
150° wide angle
Focus Range
3 cm to ∞
Lighting
10 white LEDs with adjustable brightness
Self-Leveling Function
The image always remains upright for easier interpretation
Recording Format
NTSC or PAL
Power Supply
110–240V AC, 5V input
Push Cable Waterproof Rating
10 m underwater for 30 minutes
Monitor Waterproof Rating
IP57 splash-resistant
Operating Temperature
0°C–40°C
Reel Frame Dimensions
340 mm L × 220 mm W × 420 mm H
The Key to Pipe Inspection Is Not Only Seeing Inside — It Is Keeping the Image Upright, Clear, and Recordable
2"–4" drain lines are common in residential, commercial, and construction environments. Issues may include blockages, cracks, wear, leakage, or installation defects. This system combines a 7-inch touchscreen, self-leveling camera, 150° wide-angle view, and adjustable LED lighting to help operators identify internal pipe conditions faster and save inspection results for repair, acceptance, and communication.
Camera System
Camera and Display System
The Ø30mm color camera features a 150° wide-angle view, self-leveling image, and adjustable LED lighting. Combined with a 7-inch anti-glare touchscreen, it supports real-time inspection of drain lines, confined spaces, and construction acceptance work.
150° Wide-Angle View
Provides a wider internal pipe view, reducing the risk of missing pipe wall or bend abnormalities.
Self-Leveling Image
Keeps the image upright, making inspection direction more intuitive and improving field interpretation.
Adjustable White LEDs
10 white LEDs can be adjusted according to pipe conditions for better visibility in dark or reflective environments.
Features
Product Features
Built around 30 m inspection capacity, a 7-inch touchscreen, self-leveling camera, 150° wide-angle view, adjustable LED lighting, and waterproof design, this system improves pipe inspection, repair diagnosis, and construction acceptance efficiency.
For 2"–4" Pipes
Suitable for common pipe sizes such as drain lines, branch lines, and toilet pipelines.
Up to 30 m Inspection Range
Suitable for longer drain line inspection and wider field coverage.
7-Inch Color Touchscreen
Anti-glare touchscreen allows real-time viewing and easier operation on site.
Ø30mm Self-Leveling Camera
Keeps the image upright to reduce direction confusion and interpretation errors.
Waterproof Push Cable
The push cable can operate 10 m underwater for 30 minutes, suitable for damp or water-exposed inspections.
IP57 Splash-Resistant Monitor
The monitor provides splash resistance for better field durability and safety.
NTSC / PAL Recording Support
Supports common recording formats for saving and reviewing inspection data.
Designed for Efficient Field Work
Suitable for plumbing repair, construction acceptance, and post-cleaning pipe inspection.
Applications
Applications
Suitable for drain lines, branch lines, toilet pipelines, cavities, shafts, utility spaces, and other confined areas. It can be used for blockage, damage, leakage, wear, crack inspection, post-cleaning checks, and new pipe installation acceptance.
Internal Pipe Inspection
Suitable for 2"–4" drain lines, branch lines, and toilet pipelines to inspect blockages, damage, and leakage.
Confined-Space Inspection
Suitable for cavities, shafts, and other hard-to-access areas, providing clear image support for diagnosis.
Damage Analysis
Can inspect wear, cracks, blockages, and other abnormal conditions to support repair decisions.
Inspection Record Storage
Inspection results can be saved for later review, repair communication, reporting, and acceptance confirmation.
Post-Cleaning Inspection
Suitable for confirming whether residual blockage or abnormal conditions remain after pipe cleaning.
New Pipe Acceptance
Can be used for internal inspection of newly installed pipes to confirm construction quality and pipe condition.
