KS Industrial-Inspection-Manhole-S5500

KS_inspection_Industrial-Micro_S5500
Taiwan
KS
S5500

Industrial Inspection - Manhole

3.5" color LCD｜640 × 480 resolution｜Ø28 mm color camera｜Ø6 mm push cable, 5 m｜8 LEDs｜Camera head IP68 / push cable IP65｜Built-in 4GB SD card｜Approx. 3-hour runtime.
A lightweight handheld inspection system for ceilings, pipes, and confined spaces.
Product Features
  • Clear Color Display: 3.5" color LCD with 640 × 480 resolution for real-time image viewing.
  • Handheld Design: Lightweight body with shoulder strap for easier carrying and long-hour operation.
  • Simple Operation: Push-button controls allow quick photo capture and video recording.
  • 2× Image Zoom: Enlarges the inspection image for closer detail checking.
  • Brightness Adjustment: Side knob allows screen brightness adjustment for different inspection environments.
  • Real-Time Status Display: Shows date, time, battery level, and storage capacity.
  • Built-in 4GB SD Card: Stores photos and videos, with USB connection for playback on a TV or laptop.
  • LED Camera Illumination: Ø28 mm color camera with 8 LEDs for dark areas and pipe interiors.
  • Waterproof Design: IP68 camera head and IP65 push cable for damp or pipe inspection environments.
  • Approx. 3-Hour Runtime: Supports typical field inspection work after a full charge.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
SDS5500
S5500

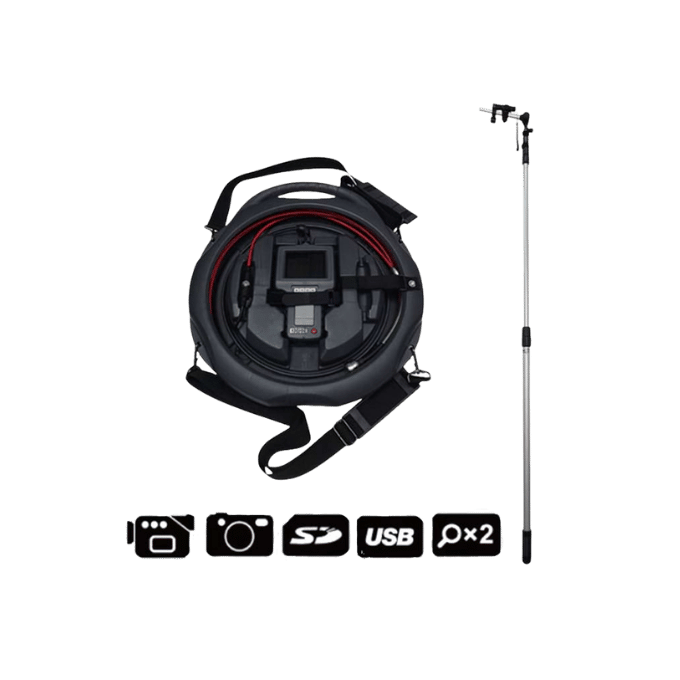

Main unit supplied with SD memory card, AC charger, USB cable, and AV connector; Reel assembly: includes 5 m push rod with Ø28 mm color camera, plus a 10 m telescopic probe mounting rod.
2 kg

Other specifications are available upon request.

Product Details

Product Overview
Portable Inspection Camera System
This portable inspection camera system is equipped with a 3.5-inch LCD display, Ø28mm color camera head, and 5 m push cable. It is suitable for inspecting shafts, pipe spaces, and various confined areas. The camera head is IP68 waterproof, while the push cable is IP65 waterproof, helping operators inspect blockages, leaks, foreign objects, or internal abnormalities. With 4GB SD card storage, photo capture, video recording, zoom, and brightness adjustment, it supports pre-repair diagnosis, fault analysis, and maintenance planning.
Product Type
Portable inspection camera system
Display
3.5" LCD, 640 × 480 resolution
Camera Diameter
Ø28mm color camera head
Push Cable
5 m length, Ø6mm diameter
Waterproof Rating
IP68 waterproof camera head; IP65 waterproof push cable
Storage Media
4GB SD card
Battery Runtime
Approx. 3 hours
Operation
Push-button controls for photo, video, and zoom; side knob for brightness adjustment
Confined-Space Inspection Is Not Only About Reaching Inside — It Is About Recording Clearly and Diagnosing Quickly

Shafts, pipe spaces, and narrow equipment areas are often difficult to inspect visually. Without image assistance, misjudgment or unnecessary disassembly can occur. With a 5 m push cable, waterproof camera head, image storage, and real-time display, this system helps technicians locate problems faster and reduce repair time and field risk.

Features
Product Features
Built around a 3.5-inch LCD display, Ø28mm color camera, 5 m push cable, IP68 / IP65 waterproof design, SD card storage, and brightness adjustment, this system is suitable for quick field inspection and maintenance diagnosis.
3.5-Inch LCD Display

Allows real-time viewing on site for condition checking, abnormality detection, and repair assessment.

Ø28mm Color Camera

Provides clear color images for pipe spaces, shafts, and confined-space inspection.

5 m Ø6mm Push Cable

Can reach areas that are difficult to inspect visually, suitable for short- to mid-range inspection tasks.

IP68 Waterproof Camera

The camera head features high waterproof protection for damp pipelines and water-exposed inspection environments.

IP65 Waterproof Push Cable

The push cable has waterproof protection, improving durability and confidence during field use.

4GB SD Card Storage

Stores image data for later review, repair communication, and documentation.

Photo, Video, and Zoom

Push-button controls allow operators to capture photos, record video, and zoom during inspection.

Side Brightness Adjustment Knob

Brightness can be adjusted according to the inspection environment for better visibility in dark or reflective areas.

Applications
Applications
Suitable for shafts, pipe spaces, confined areas, and other hard-to-see locations. It can be used for checking blockages, leaks, foreign objects, damage, and before / after repair conditions.
Shaft Inspection

Can inspect hard-to-access shaft spaces and help identify internal conditions and abnormal points.

Pipe Space Inspection

Can inspect internal pipe conditions and help identify blockages, leaks, or other issues.

Confined-Space Inspection

Suitable for narrow spaces that are difficult to reach, providing clear images and video records.

Fault Analysis

Image inspection helps identify the source of problems and reduce blind disassembly or misjudgment.

Maintenance Planning

Helps confirm the problem location and scope before repair, making it easier to plan tools and repair methods.

Before / After Repair Check

Can be used before repair to confirm issues and after repair to verify results for clearer field communication.
