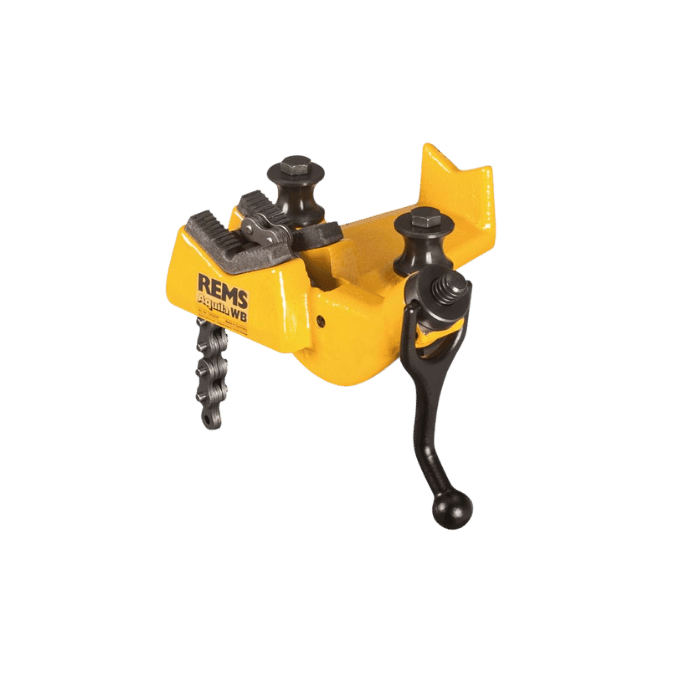

REMS Top-Screw-Bench-Chain-Vise-Aquila-WB

REMS_Top_Screw_Bench_Chain_Vise_120250
REMS_Top_Screw_Bench_Chain_Vise_120250_2
Germany
REMS
Aquila WB

Top Screw Bench Chain Vise

Pipe capacity 1/8"–8" (6–200 mm)｜Multiple sizes available｜Toothless jaws for plastic pipes｜Standard hardened alloy steel chain and jaws｜Rugged cast iron base｜Integrated pipe support + bending function.
Product Features
  • Multi-Function Cast Iron Base: Rugged base integrates pipe support and simple bending functions for better jobsite efficiency.
  • Chain-Type Fast Holding: Quickly secures pipes of different diameters with simple, time-saving operation.
  • Plastic Pipe Jaws: Toothless jaws with synthetic plastic covering help reduce the risk of scratching plastic pipe surfaces.
  • Standard Alloy Steel Jaws: Hardened alloy steel jaws and chain provide strong gripping force and long service life.
  • Wide Pipe Capacity: Suitable for 1/8"–8" (6–200 mm) pipes, with multiple sizes available.
  • Multi-Application Use: Suitable for plumbing, factory piping installation, maintenance, fabrication, and jobsite holding work.
Add to Inquiry
Tags
Show
＃8" ＃1/8"

Model Specifications

SKU
Model
Description
Weight
Remarks
120250
Aquila WB
Pipe Capacity 1/8~6" (10-165mm)
6.6kg
40185
BC210
Pipe Capacity 1/8~2 1/2" (6-60mm)
3.5kg
40190
BC210P
Pipe Capacity 1/2~2 7/8" (15-70mm)
3.4kg
40195
BC410
Pipe Capacity 1/8~4" (6-100mm)
6.7kg
40200
BC410P
Pipe Capacity 1/2~4 1/2" (15-110mm)
6.6kg
40205
BC510
Pipe Capacity 1/8~5" (6-125mm)
6.8kg
40210
BC610
Pipe Capacity 1/4~6" (8-150mm)
11.1kg
40215
BC810
Pipe Capacity 1/2~8" (15-200mm)
17.3kg

Product Details

Technical Data
Product Specifications
The chain vise is suitable for 1/8"–8" pipes and fittings, with 7 size options available. Its chain-style design allows fast pipe holding, while the ribbed cast-iron base, integrated pipe rest, and simple bending function make it suitable for jobsites, factories, pipe installation, and maintenance work.
Capacity Range
1/8"–8".
Product Options
Available in 7 sizes to meet different pipe holding requirements.
Plastic Pipe Model
Toothless jaws covered with synthetic plastic to prevent scratching pipe surfaces.
Standard Model
Hardened alloy steel jaws and heavy-duty chain design for long-term frequent use.
Base Structure
Ribbed cast-iron base with convenient pipe rest and simple bending function.
Fast Chain Holding with Efficiency, Stability, and Pipe Protection

The chain vise quickly secures pipes of different diameters, making it suitable for field work that requires stable support and efficient operation. The standard model is suitable for steel pipes and general fittings, while the plastic pipe model uses toothless jaws with synthetic plastic covering to reduce the risk of surface scratches.

Features
Product Features
Built around fast chain holding, a ribbed cast-iron base, scratch-protection jaws for plastic pipes, hardened alloy steel jaws for standard use, and flexible operation, this vise is suitable for various pipe holding and field processing needs.
Multi-Function Base

The ribbed cast-iron base is strong and includes a convenient pipe rest and simple bending function.

Fast Chain Holding

The chain-style design quickly secures pipes, making operation simple and saving work time.

Plastic Pipe Protection

Plastic pipe jaws are covered with synthetic plastic to help prevent scratches on pipe surfaces.

Durable Holding Structure

Hardened alloy steel jaws and a heavy-duty chain provide durability for long-term use.

Flexible Operation

The chain operation easily secures pipes of various diameters and suits multiple work environments.

Multiple Size Options

Available in 7 sizes to match different pipe diameters, materials, and job requirements.

Applications
Applications
Suitable for holding plastic pipes, steel pipes, and other fittings. Widely used on jobsites, in factories, and for pipe installation and maintenance, especially where fast holding and pipe surface protection are required.
Plastic Pipe Holding

The plastic pipe model helps prevent surface scratches and is suitable for applications requiring surface protection.

Steel Pipe Holding

The standard model uses hardened alloy steel jaws and a heavy-duty chain for steel pipes and general fittings.

Jobsite Work

The fast chain holding design is suitable for pipe positioning, support, and processing on jobsites.

Factory Work

Can be used for pipe holding, processing, assembly, and maintenance in factory environments.

Pipe Installation and Maintenance

Suitable for pipe holding needs in plumbing work, pipe installation, and maintenance.

Pipe Processing

Especially suitable for pipe processing where fast holding, stable support, and scratch prevention are required.
