Intercable-Universal-Cable-Stripper-AMS-AV6220

AMS - Universal Cable Stripper
Italy
Intercable
AV6220

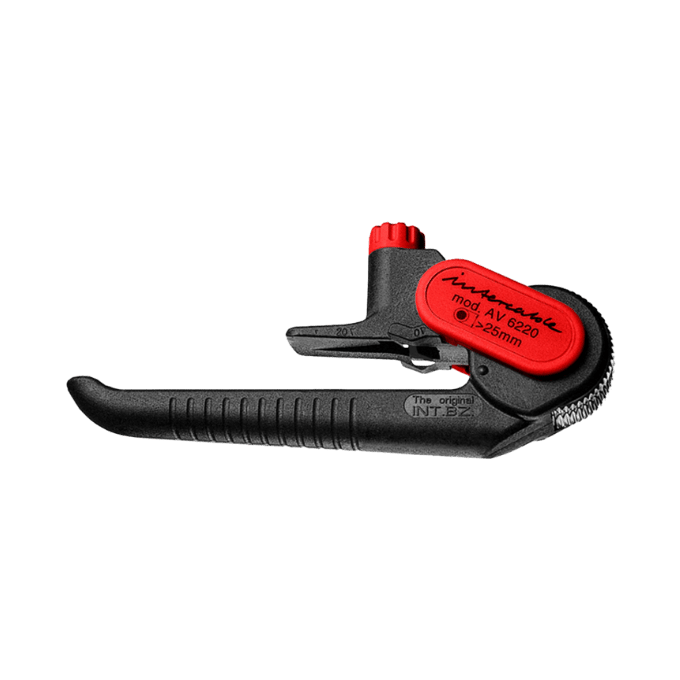

AMS Universal Cable Stripper

Suitable for removing outer sheaths from medium-voltage and low-voltage cables over Ø25 mm. Designed for PVC and rubber outer insulation. Supports longitudinal and circular cutting with adjustable cutting depth from 0–5 mm.
Product Features
  • For Large-Diameter Cables: Suitable for MV and LV cables over Ø25 mm.
  • PVC / Rubber Application: Works with common outer insulation materials for broad jobsite use.
  • Longitudinal and Circular Cutting: Supports both cable-end stripping and mid-span window stripping.
  • Adjustable Cutting Depth: 0–5 mm stripping depth for different sheath thicknesses.
  • Inner Layer Protection: Precise blade depth control helps reduce the risk of damaging underlying layers.
  • Replaceable Double-Sided Blade: Extends tool life and reduces consumable cost.
  • Quick-Lock Closure Design: Fast opening and closing for easier and more efficient operation.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
AV6220
Universal Cable Stripper

Product Details

Technical Data
Product Specifications
AV6220 cable sheath stripping tool for cables from Ø 25–1000 mm, supporting longitudinal and circumferential cutting for cable end stripping and mid-span sheath removal.
Model
AV6220
Cable diameter range
Ø 25–1000 mm
Insulation thickness
0–5 mm
Cutting depth
Adjustable
Cutting types
Longitudinal and circumferential cutting
Spiral cutting
No
Blade design
Replaceable, reversible double-sided blade
Closing mechanism
Snap-lock closing mechanism
Large-Diameter Cable Sheath Stripping Tool
Designed for removing PVC or rubber outer sheaths at cable ends or mid-span sections, with adjustable cutting depth to reduce the risk of damaging underlying cable structures.
Features
Product Features
Adjustable cutting depth, replaceable blade, and snap-lock closing mechanism for efficient cable sheath stripping and mid-span opening work.
Longitudinal and Circumferential Cutting
Supports both longitudinal cutting and circumferential ring cutting for different sheath removal methods.
End and Mid-Span Stripping
Suitable for stripping cable ends or opening the sheath in the middle of a cable run.
Reduced Risk of Underlayer Damage
Adjustable cutting depth helps reduce the risk of damaging the underlying cable structure during stripping.
Replaceable Double-Sided Blade
Equipped with a replaceable, reversible double-sided blade design for convenient maintenance.
Snap-Lock Closing Mechanism
Snap-lock closing mechanism allows easier tool positioning and operation on site.
Large Cable Compatibility
Suitable for cables larger than Ø 25 mm and supports diameters up to Ø 1000 mm.
Applications
Applications
Suitable for PVC / rubber outer sheaths, medium- and low-voltage cables, cable end stripping, and mid-span sheath opening work.
Large-Diameter Cables
Suitable for removing outer sheaths from cables larger than Ø 25 mm, supporting large cable installation work.
PVC / Rubber Outer Sheaths
Applicable to PVC or rubber outer sheath materials for medium- and low-voltage cable stripping.
End and Mid-Span Opening
Can be used for cable end stripping as well as mid-span sheath opening, improving field work flexibility.
