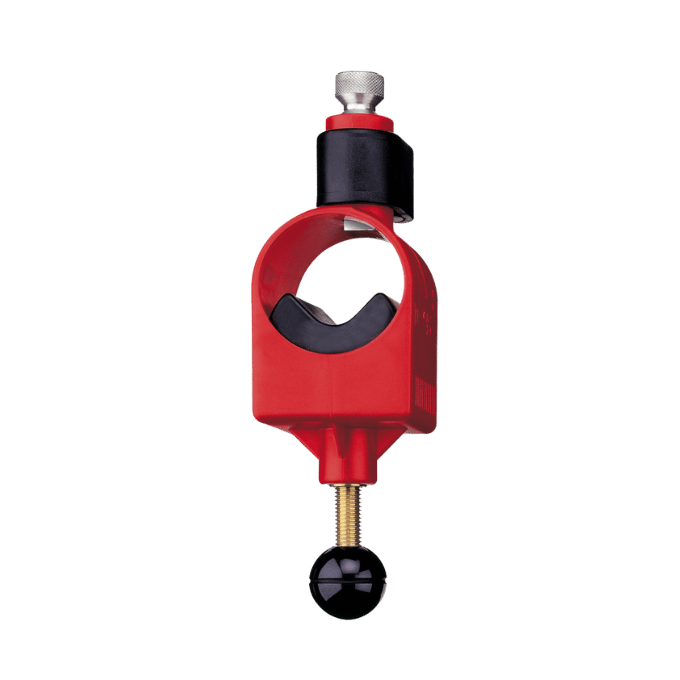

MSU Special Cable Stripper

Suitable for removing outer sheaths from medium- and low-voltage cables Ø24–60 mm. Especially suitable for PE and lead-sheathed cables. Supports circular and spiral cutting with adjustable cutting depth from 0–5 mm.

Product Features

For MV and LV Cables: Removes outer sheaths from Ø24–60 mm cables, suitable for cable-end stripping.
PE / Lead Sheath Application: Especially suitable for polyethylene and lead-sheathed cables.
Circular and Spiral Cutting: Supports circular and spiral cutting for stable and even sheath removal.
Rotary Operation Design: Simply rotate around the cable axis to complete the cut.
Adjustable Cutting Depth: Cutting depth from 0–5 mm can be adjusted according to sheath thickness.
Replaceable Blade: Easy maintenance and extended tool service life.
No Longitudinal Cutting: Designed for circular and spiral stripping applications.

Add to Inquiry

Model Specifications

Product Details

Technical Data

Product Specifications

AE6210 cable sheath stripping tool for Ø 24–60 mm polyethylene and lead-sheathed cables, supporting circumferential and spiral cutting for medium- and low-voltage cable end stripping.

Model

AE6210

Cable diameter range

Ø 24–60 mm

Insulation / stripping depth

0–5 mm

Applicable materials

Polyethylene / lead-sheathed cable

Cutting depth

Adjustable

Longitudinal cutting

Cutting types

Circumferential and spiral cutting

Replaceable blade

Yes

Operation method

Rotates along the cable axis

Rotary Cable Sheath Stripping Tool

By rotating along the cable axis, the tool performs circumferential or spiral cutting, making it suitable for end stripping and sheath removal on polyethylene and lead-sheathed cables.

Features

Product Features

Designed for medium- and low-voltage cable sheath stripping, with circumferential and spiral cutting, simple operation, and replaceable blade maintenance.

Circumferential and Spiral Cutting

Supports both circumferential and spiral cutting to match different cable stripping requirements.

Simple Rotary Operation

Simply rotate the tool along the cable axis to cut the outer sheath, improving field work efficiency.

Cable End Stripping

Suitable for stripping cable ends, especially for medium- and low-voltage cable outer sheaths.

Adjustable Cutting Depth

Cutting depth can be adjusted for 0–5 mm insulation thickness, helping reduce over-cutting risk.

Replaceable Blade

Equipped with a replaceable blade for easier maintenance and long-term field use.

No Longitudinal Cutting

This tool is designed for circumferential and spiral cutting only, and does not support longitudinal cutting.

Applications

Suitable for Ø 24–60 mm polyethylene and lead-sheathed cables, medium- and low-voltage cable sheath removal, and cable stripping work requiring circumferential or spiral cutting.

Polyethylene / Lead-Sheathed Cables

Suitable for Ø 24–60 mm polyethylene and lead-sheathed cables with 0–5 mm insulation thickness.

Medium- and Low-Voltage Cable Sheaths

Designed for removing outer sheaths from medium- and low-voltage cables, especially for cable end stripping.

Circumferential and Spiral Stripping

Suitable for cable stripping work requiring circumferential or spiral cutting, with intuitive and stable operation.
