INTERCABLE-Universal-Cable-Stripper-AMS-1000V-17130

AMS 1000V - Universal Cable Stripper
Italy
Intercable
17130

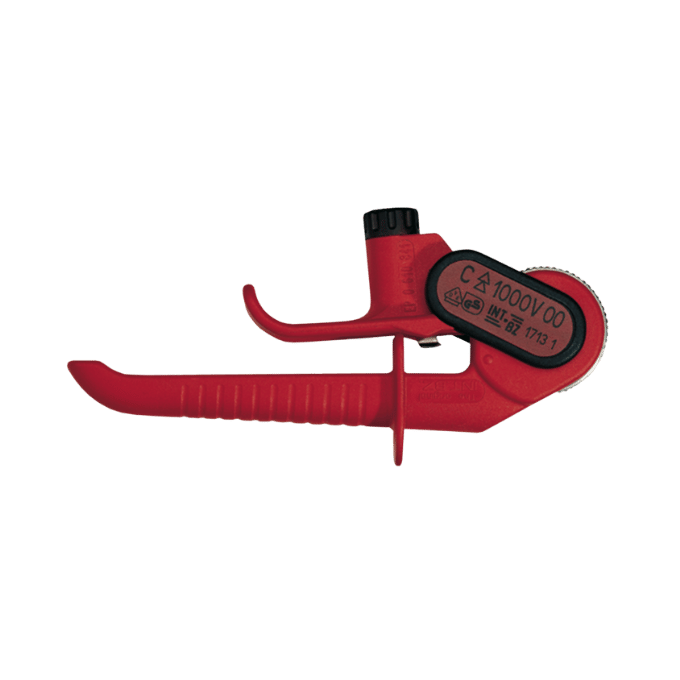

AMS Universal Cable Stripper 1000V

Suitable for live-line work up to 1000V. Designed for removing outer sheaths from medium- and low-voltage cables over Ø25 mm. Supports longitudinal and circular cutting with adjustable cutting depth from 0.5–5 mm.
Product Features
  • Live-Line Use up to 1000V: Suitable for outer sheath stripping in low-voltage live working environments.
  • For Cables over Ø25 mm: Designed for large-diameter MV and LV cables.
  • Adjustable Cutting Depth: Cutting depth can be set from 0.5–5 mm using the adjustment screw.
  • Dual Cutting Modes: Supports longitudinal and circular cutting with quick mode switching.
  • Guide Plate Control: At the start of cutting, the guide plate can be lightly pressed by finger to control blade direction.
  • Stable Stripping Design: Teeth press the insulation layer during cutting for improved stability.
  • Mid-Span Window Stripping: Blade tip can be slightly pressed into the outer insulation for controlled mid-span stripping.
  • Replaceable Blade: Easy maintenance and extended tool service life.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
17130
Universal Cable Stripper 1000V

Product Details

Technical Data
Product Specifications
Model 17130 cable insulation stripping tool for cables up to 1000V, designed for longitudinal cutting, circumferential cutting, and mid-span insulation stripping.
Model
17130
Voltage rating
Up to 1000V
Cable diameter range
Ø 25–1000 mm
Insulation thickness
0.5–5 mm adjustable
Cutting depth adjustment
Yes, via adjustment screw
Cutting types
Longitudinal and circumferential cutting
Spiral cutting
No
Replaceable blade
Yes
Operation method
Finger-pressed guide plate with small lever movement
Cable Stripping Tool for Up to 1000V
Cutting depth can be adjusted from 0.5–5 mm via the adjustment screw, supporting longitudinal and circumferential cutting for outer insulation removal and mid-span stripping.
Features
Product Features
Adjustable cutting depth, guided blade direction, blade switching, and replaceable blade design for efficient cable insulation stripping work.
For Up to 1000V Cable Work
Suitable for cable work environments up to 1000V and general low-voltage cable insulation stripping.
Adjustable Cutting Depth
Cutting depth can be set from 0.5–5 mm using the adjustment screw for different insulation thicknesses.
Longitudinal and Circumferential Cutting
Supports both longitudinal cutting and circumferential ring cutting, with blade switching between both cutting modes.
Guide Plate Direction Control
At the start of cutting, the blade direction can be controlled by lightly pressing the guide plate with a finger.
Small Lever Cutting Motion
The outer insulation is cut using a small lever movement, while the toothed section presses the insulation layer for added stability.
Replaceable Blade
Equipped with a replaceable blade for easier maintenance and long-term field use.
Applications
Applications
Suitable for cables up to 1000V, outer insulation stripping, longitudinal opening, circumferential ring cutting, and mid-span stripping work.
Cable Work Up to 1000V
Suitable for cables up to 1000V and outer insulation stripping across Ø 25–1000 mm cable diameter range.
Longitudinal and Ring Cutting
Can be used for longitudinal cable opening and circumferential ring cutting for different stripping requirements.
Mid-Span Cable Stripping
Suitable for mid-span cable stripping; the blade tip should be slightly pressed into the outer insulation layer to start cutting.
