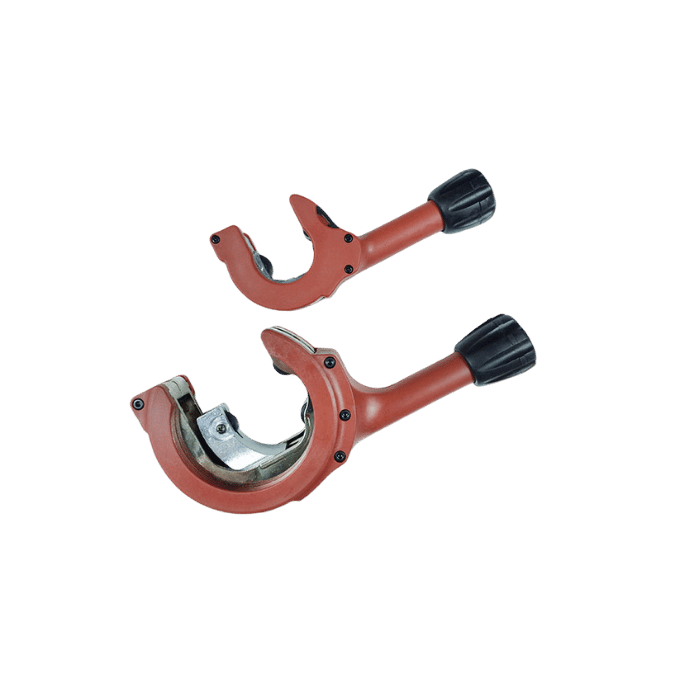

KS-Rotary-Tube-cutter

KS_rotary_tube_cutter_KS1235
KS_rotary_tube_cutter_KS1235_1
Taiwan
KS
KS系列

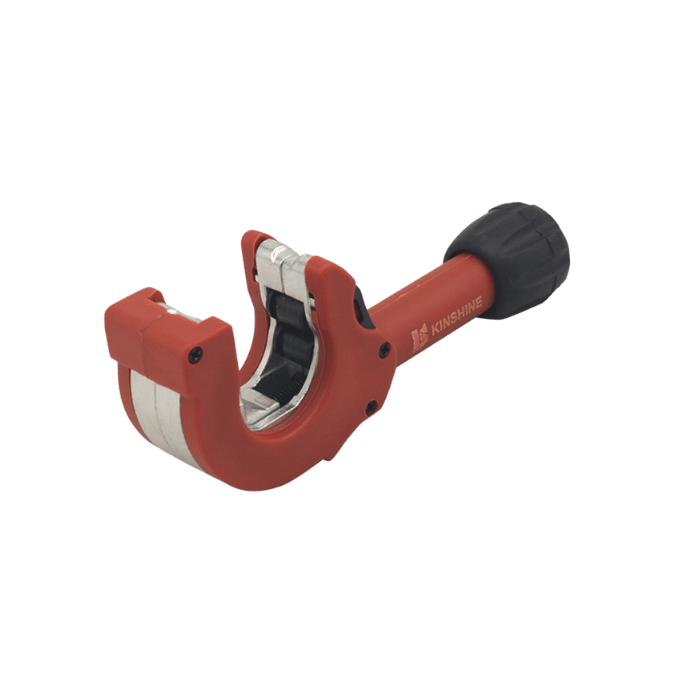

Rotary Tube cutter

Suitable for pipe sizes 8–35 mm｜For thin-wall stainless steel, copper, and aluminum pipes｜Three sizes available｜One-hand operation｜Standard / ratchet dual-use design｜Ideal for confined spaces.
Product Features
  • One-Hand Operation: Allows cutting with one hand for simpler jobsite workflow.
  • Dual-Use Cutting Design: Can be used as a standard cutter or with ratchet-style rotation.
  • Confined-Space Application: Suitable for wall-adjacent and restricted working areas.
  • No Full Rotation Required: Cuts without fully rotating the cutter around the pipe.
  • Multi-Material Application: Suitable for thin-wall stainless steel, copper, and aluminum pipes.
  • Spare Cutter Wheel Included: Supports better jobsite continuity and easier maintenance.
Add to Inquiry
Tags
Show
＃5/16" ＃1 3/8" ＃Aluminum Tube ＃Annealed Brass Tube ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube

Model Specifications

SKU
Model
Description
Weight
Remarks
KS323
KS323
8–23 mm, with spare cutter wheel
0.45 kg
Cutter wheel 33165K
KS328
KS328
8–28 mm, with spare cutter wheel, without reamer
0.45 kg
Cutter wheel 33165K
KS1235
KS1235
12–35 mm, with spare cutter wheel
0.50 kg
Cutter wheel 33165K

Product Details

Technical Data
Product Specifications
The dual-purpose thin-wall tube cutter is available in three size ranges: 8–23 mm, 8–28 mm, and 12–35 mm, covering different tube cutting needs. It is suitable for thin-walled stainless steel tubes, wall conduits, copper tubes, and aluminium tubes, especially for precise cutting in narrow spaces, corner areas, and around existing piping.
Available Sizes
8–23 mm, 8–28 mm, 12–35 mm
Applicable Materials
Thin-walled stainless steel tubes, wall conduits, copper tubes, aluminium tubes
Main Use
Thin-wall tube cutting, pipe repair, installation, and renovation work
Working Environment
Narrow spaces, restricted areas, around pipes, and corner installation work
Precise Cutting in Narrow Spaces for Better Jobsite Flexibility

Designed for wall-side areas, corners, and positions around existing pipes where larger cutting tools are difficult to use. It helps installers complete thin-wall tube cutting quickly in restricted environments.

Features
Product Features
Built around multiple size options, thin-wall tube cutting, and restricted-space operation, making it suitable for plumbing, HVAC, renovation, and pipe repair jobsites.
Three Size Options

Available in 8–23 mm, 8–28 mm, and 12–35 mm sizes, allowing users to choose the right tool for different tube diameters.

Multiple Materials

Suitable for thin-walled stainless steel tubes, wall conduits, copper tubes, and aluminium tubes.

Narrow-Space Operation

Suitable for cutting around pipes, corners, and restricted positions, improving jobsite handling convenience.

Precise Cutting

Suitable for repair, installation, and renovation work requiring stable and accurate thin-wall tube cutting.

Applications
Applications
Suitable for cutting thin-walled stainless steel tubes, wall conduits, copper tubes, and aluminium tubes. It can be used in pipe repair, piping installation, renovation work, plumbing, and HVAC projects.
Pipe Repair

Suitable for existing pipe repair, partial replacement, and thin-wall tube cutting in restricted spaces.

Piping Installation

Can be used for tube cutting preparation before plumbing, HVAC, and general piping installation.

Renovation Work

Suitable for wall conduits, corner areas, and precise cutting needs in renovation jobsites.

Restricted-Space Work

Provides better operating convenience around pipes, in corners, and in space-limited work positions.

Video
Product Video
Watch the operation video to understand how the dual-purpose thin-wall tube cutter is used in narrow spaces and real jobsite applications.
