Mini-Tubing-Cutter-REMS-Cu-INOX-series

REMS_mini_tube_cutter_cu-inox_113200
REMS_mini_tube_cutter_cu-inox_113200_1
Germany
REMS
Cu-INOX系列

Mini Tubing Cutter

Suitable for pipe sizes 3–28 mm｜For copper, brass, aluminum, and thin-wall stainless steel pipes｜Ergonomic knob｜Hardened wide rollers｜Precise square cutting｜Ideal for confined spaces.
Provides smooth and stable cutting performance for precision jobsite installation, construction, and maintenance work.
Product Features
  • Compact Body Design: Ideal for confined spaces and limited-access working areas.
  • Hardened Roller Structure: Keeps the pipe stable and aligned for long-term cutting performance.
  • Wide Roller Guide: Improves cutter wheel stability for accurate square cuts.
  • Ergonomic Knob: Smooth, low-effort operation that reduces hand fatigue and extends tool life.
  • Overfeed Prevention Design: Limits spindle feed to prevent the cutter wheel from contacting the rollers, ensuring stable cutting.
Add to Inquiry
Tags
Show
＃1 1/8" ＃Aluminum Tube ＃1/8" ＃Annealed Brass Tube ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube

Model Specifications

SKU
Model
Description
Weight
Remarks
113200
Cu-INOX 3-16
1/8"–5/8" (3–16 mm), wall thickness ≤4 mm.
0.15 kg
Cutter wheel 113210.
113240
Cu-INOX 3-28
1/8" –1 1/8" (3-28mm), wall thickness ≤4 mm.
0.20 kg
Cutter wheel 113210.

Product Details

Technical Data
Product Specifications
REMS mini tube cutters are suitable for copper, brass, aluminum tubes, and thin-wall stainless steel tubes. Available cutting ranges include 3–16 mm and 3–28 mm. The compact body is especially suitable for precision cutting in confined spaces, corners, and dense piping areas.
Cutting Range
1/8"–5/8" / 3–16 mm
Cutting Range
1/8"–1 1/8" / 3–28 mm
Suitable Materials
Copper, brass, aluminum tubes, thin-wall stainless steel tubes
Main Application
Precision small-diameter tube cutting, pipe installation, repair, and replacement work
Working Environment
Confined spaces, renovation sites, around piping, and corner areas
Compact Design for Precision Cutting in Confined Spaces

Designed for small-diameter tubes and restricted working conditions, helping installers complete accurate cutting around dense piping, wall-side areas, and corners.

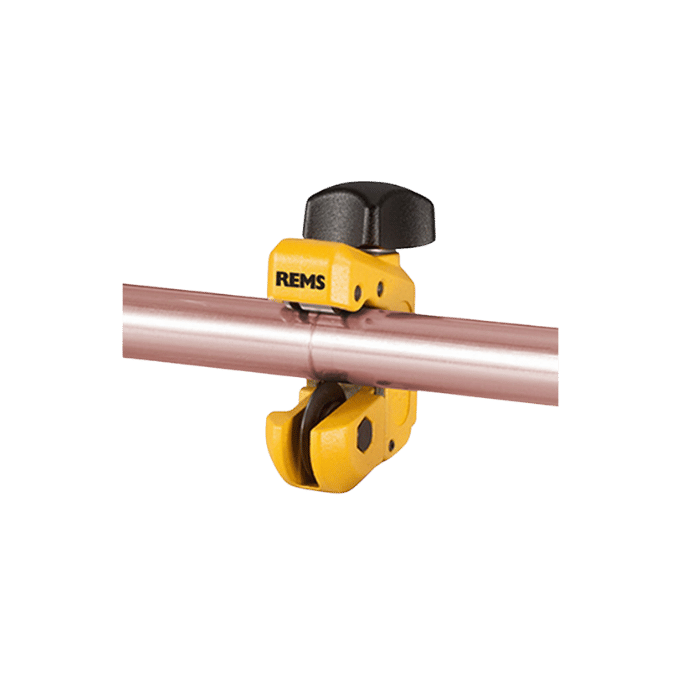

REMS mini tube cutter

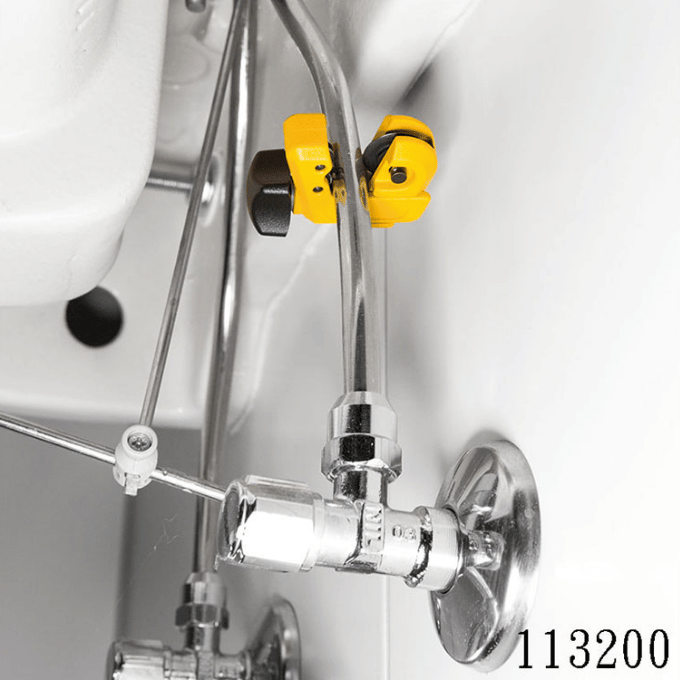

REMS mini tube cutter application
Applications
Applications
Suitable for small-diameter copper, brass, aluminum, and thin-wall stainless steel tubes. Ideal for renovation, pipe installation, repair, or replacement work in space-limited environments.
Confined-Space Cutting

Suitable for small-diameter tube cutting around piping, in corners, wall-side areas, and restricted spaces.

Renovation and Repair

Can be used for renovation sites, existing pipe repair, and partial tube replacement work.

Pipe Installation

Suitable for small-diameter cutting preparation before plumbing, HVAC, and general piping installation.

Precision Small-Tube Work

Compact design with stable cutting performance for applications requiring accurate small-diameter tube cutting.
