CBC-Hydraulic Bender-OB85SH

CBC_hand_pipe_bending_OB85SH_9050060
CBC_hand_pipe_bending_OB85SH_9050060_1
Italy
CBC
OB/85SH

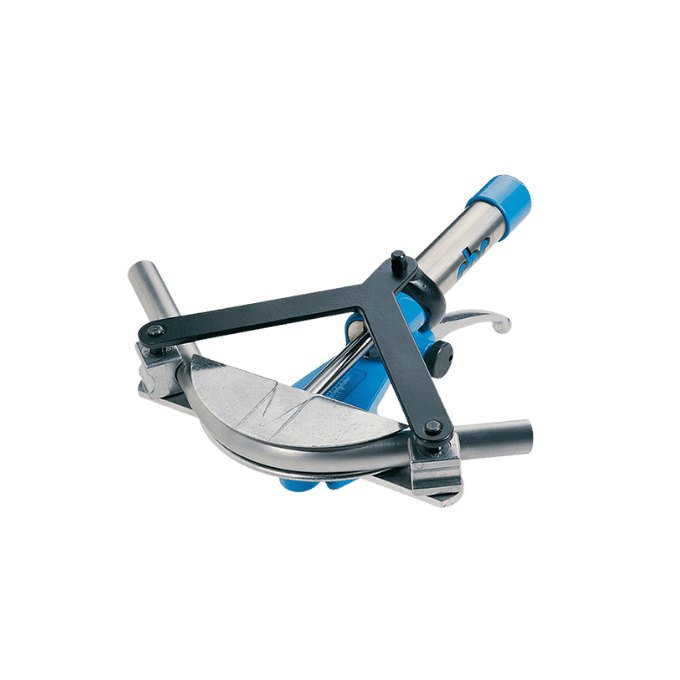

Hydraulic Bender

Suitable for annealed copper pipes 6–22 mm (1/4"–7/8") and thin-wall stainless steel pipes 6–18 mm. Features a reinforced Y-shaped support and dual hydraulic circuit.
Lightweight body with strong, stable bending force, ideal for demanding jobsite installation and maintenance work.
Product Features
  • Reinforced Y-Shaped Support: Strengthens the bending former crossbar for better stability in demanding applications.
  • Powerful Bending Capability: Bends pipes with less effort while maintaining efficiency and accuracy.
  • Lightweight and Easy to Operate: Reinforced structure with comfortable handling for long working hours.
  • Durable Metal Construction: Die-cast aluminum and stainless steel body for long-term heavy-duty use.
  • Dual Hydraulic Circuit: Long piston stroke provides stable force and a wider working range.
  • Adjustable Pump Lever: Adjustable to hand size for better comfort and operating control.
Add to Inquiry
Tags
Show
＃Pipe Bending Tools ＃HVAC Tools ＃Annealed Brass Tube ＃7/8" ＃1/4" ＃5/8" ＃Soft & Hard Copper Tubes ＃3/8" ＃Stainless Steel Tube ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
9050060
OB/85S H

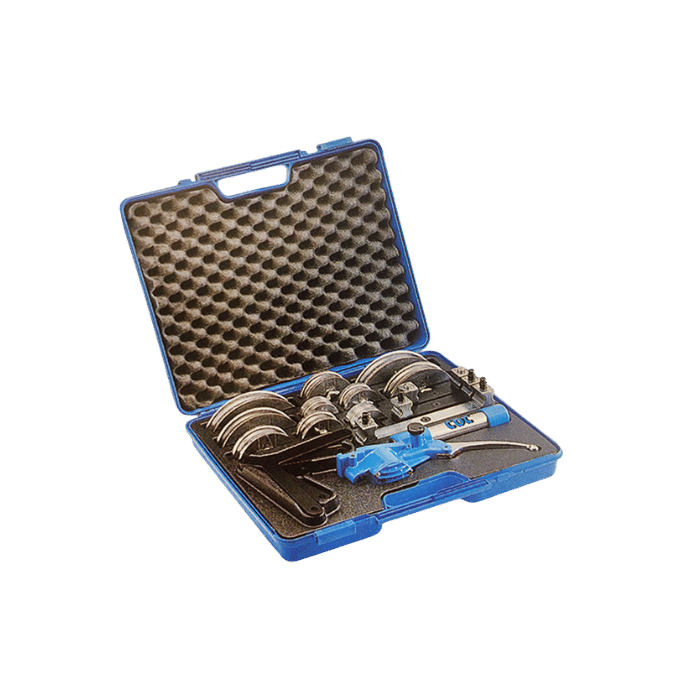

Includes 1/4"–7/8" (7) formers and 10–12, 14–17 & 18–22 mm crossbars (3).
2.3kg

Product Details

Materials
Applicable Materials
Suitable for annealed copper pipes, thin-wall stainless steel pipes, and boiler tubes where stable, precise small-diameter bending is required.
Copper pipe
6–22 mm, wall thickness s ≤ 1.5 mm
Thin-wall stainless steel pipe
6–18 mm, wall thickness s ≤ 1.2 mm
Note: Annealed copper pipes and annealed thin-wall stainless steel pipes are required.
Reinforced Small-Pipe Bending Tool
Designed for higher-strength small metal pipe bending, combining stable support, durable construction, and convenient field operation.
Features
Product Features
Reinforced construction with a stable hydraulic system for long-duration, precise, and high-strength bending work.
Reinforced Design
The added Y-shaped support strengthens the bending former crossbar and improves overall stability for higher-duty bending work.
Powerful Bending Capacity
Even with larger pipe diameters, the tool helps complete bending with less effort while maintaining efficiency and accuracy.
Lightweight and Easy to Operate
Despite its reinforced design, the tool remains lightweight and practical for extended field operation.
Durable Structural Design
Die-cast aluminum and stainless steel construction with dual hydraulic circuits and a long piston stroke support demanding work.
Adjustable Pump Lever
The pump lever can be adjusted according to hand size, improving comfort and control during long working sessions.
Stable Long-Duration Operation
Suitable for professional construction and maintenance environments requiring continuous bending and reliable performance.
Applications
Copper and Stainless Pipe Bending
Suitable for bending copper pipes and thin-wall stainless steel pipes used in air-conditioning piping, refrigeration equipment, water piping, and fire protection piping.
Heavy-Duty Use
High-Intensity Work Environments
The reinforced structure is suitable for long-duration, high-intensity use, improving stability and work efficiency on site.
