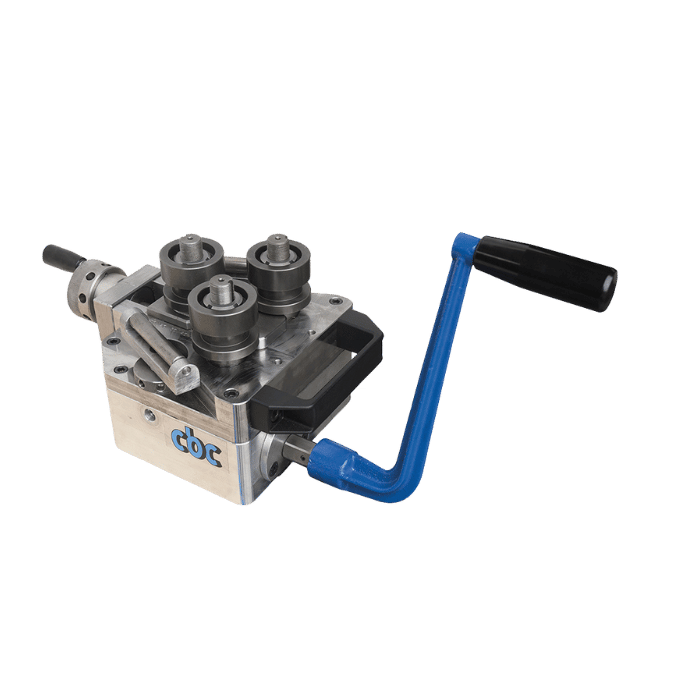

CBC-Mini Ring Roller-MINI-CALA

CBC_hand_pipe_bending_mini_cala_9230400
CBC_hand_pipe_bending_mini_cala_9230400_1
CBC_hand_pipe_bending_mini_cala_9230400_2
Italy
CBC
MINI CALA.

Mini Ring Roller

Suitable for hard copper pipes, annealed brass pipes, 304 / 316 thin-wall stainless steel pipes, and boiler tubes. Hard copper / boiler tubes up to Ø22 mm with wall thickness up to 3 mm; stainless steel pipes up to Ø16 mm with wall thickness up to 2 mm. Bending angle: 0°–360°.
Product Features
  • Multi-Metal Application: Bends copper, brass, thin-wall stainless steel, and boiler tubes for various jobsite needs.
  • 0°–360° Bending Angle: Flexible angle adjustment for a wide range of bending tasks.
  • Lightweight Aluminum Body: Strong, durable, and stable for long-term use.
  • Precise Manual Control: Simple operation with accurate bending control to reduce deformation risk.
  • Compact and Portable: Approx. 106 mm × 310 mm body size for easy jobsite use and storage.
Add to Inquiry
Tags
Show
＃Hydraulic & Boiler Tubes ＃Pipe Bending Tools ＃5/8" ＃7/8" ＃Annealed Brass Tube ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube

Model Specifications

SKU
Model
Description
Weight
Remarks
9230400
MINI CALANDRA

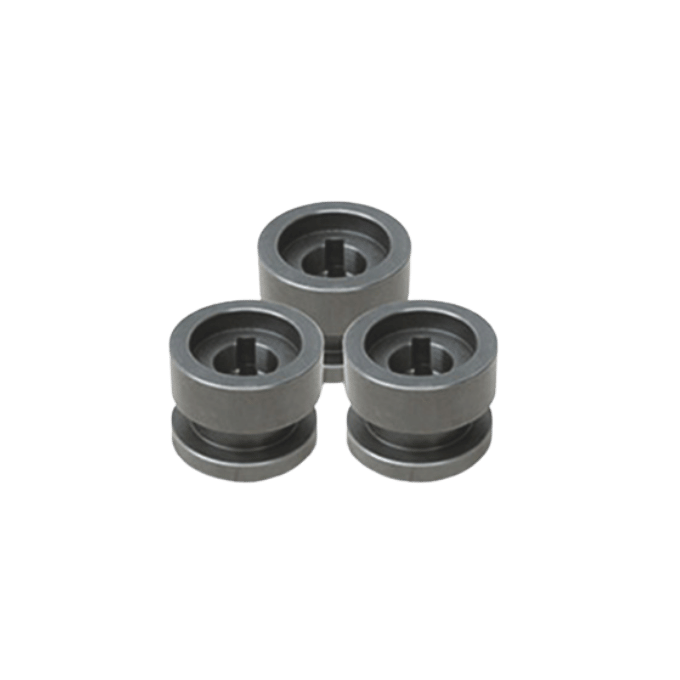

Includes handle, universal rollers (3) for steel plates, and clamp
14 kg
9230400.1

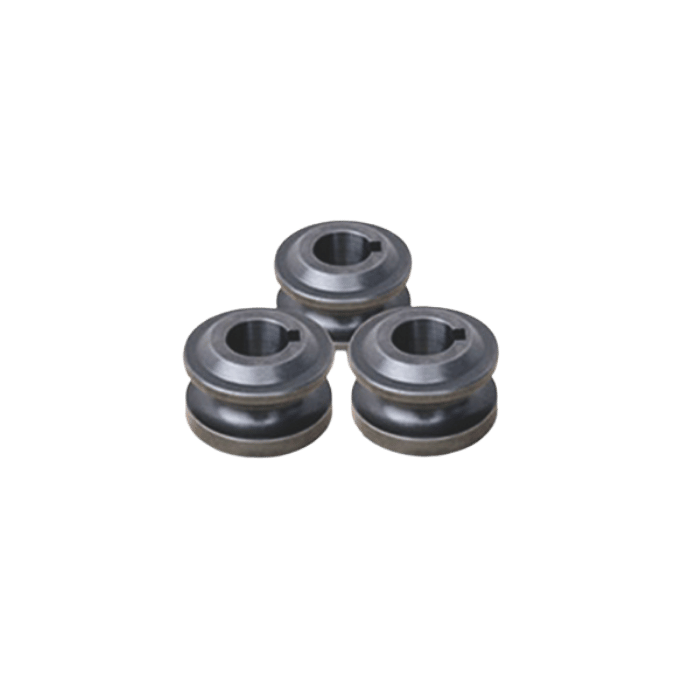

Metal pipe rollers (3) for metal pipes. Purchase required size as needed.

Product Details

Materials
Applicable Materials
Suitable for hard copper, annealed brass, thin-wall stainless steel, and boiler tubes for precision bending of small metal pipes.
Hard copper / annealed brass pipe
Up to Ø22 mm, wall thickness ≤ 3 mm
Thin-wall stainless steel 304 / 316
Up to Ø16 mm, wall thickness ≤ 2 mm
Boiler tube ST35.4
Up to Ø22 mm, wall thickness ≤ 3 mm
Precision Bending for Small Metal Pipes
Designed for stable bending quality and accurate forming, especially for on-site maintenance and pipe routing adjustments.
Applications
Piping Work
Suitable for bending hard copper, brass, and thin-wall stainless steel pipes, especially where high bending accuracy is required.
Maintenance
Maintenance Work
Applicable to repair bending work for various metal pipes, helping maintain stable and precise pipe routing.
Video
Product Video
