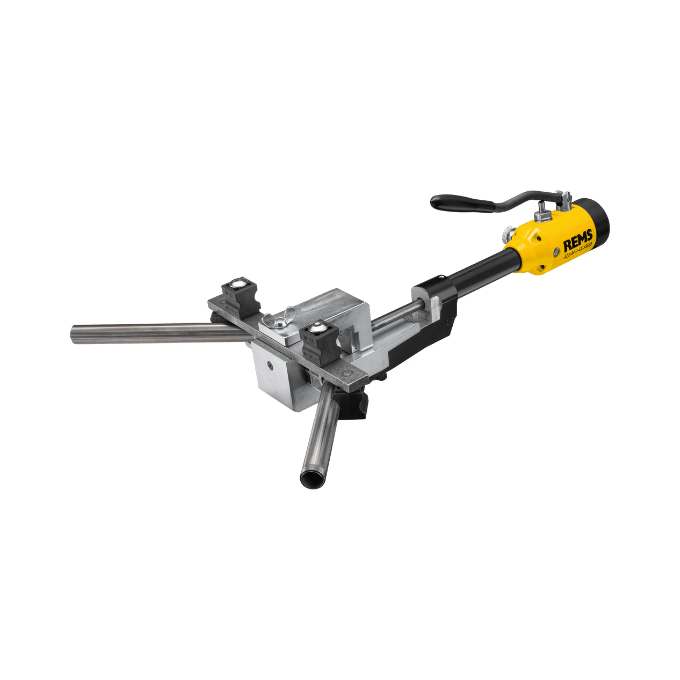

REMS-Oil-ydraulic hand pipe bender-Hydro-swing

REMS_hand_pipe_bending_hydro_swing_153521
REMS_hand_pipe_bending_hydro_swing_153521_1
REMS_hand_pipe_bending_hydro_swing_153521_2
Germany
REMS
Hydro-swing

Oil-ydraulic hand pipe bender

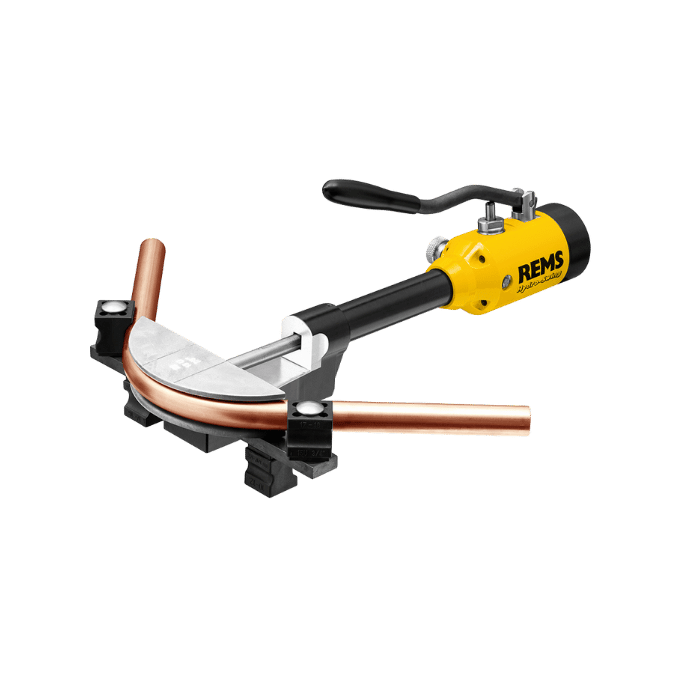

Suitable for soft copper, coated copper, thin-wall stainless steel, carbon steel, and multilayer composite pipes from 10–32 mm. Completes a bend on Ø22 mm copper pipe in approx. 18 seconds. Weight: 2.4 kg. Ready to use without installation. Optional eco-friendly bending spray available.
Product Features
  • Multi-Material Application: Bends soft copper, coated copper, thin-wall stainless steel, carbon steel, and multilayer composite pipes.
  • Fast Bending Performance: Completes a bend on Ø22 mm copper pipe in approx. 18 seconds for better work efficiency.
  • Lightweight and Portable Design: Only 2.4 kg with a compact body for easy jobsite mobility.
  • Ready to Use: No installation required, suitable for jobsites, maintenance, and multi-scenario applications.
  • Easy and Low-Effort Operation: Simple, intuitive design helps reduce hand fatigue during extended use.
  • Optional Bending Spray: Helps reduce friction for smoother and more consistent bending.
Add to Inquiry
Tags
Show
＃Composite Pipe ＃7/8" ＃5/8" ＃3/8" ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube ＃3/4" ＃1/2" ＃Annealed Brass Tube

Model Specifications

SKU
Model
Description
Weight
Remarks
153521
Set 10-12-15-18-22

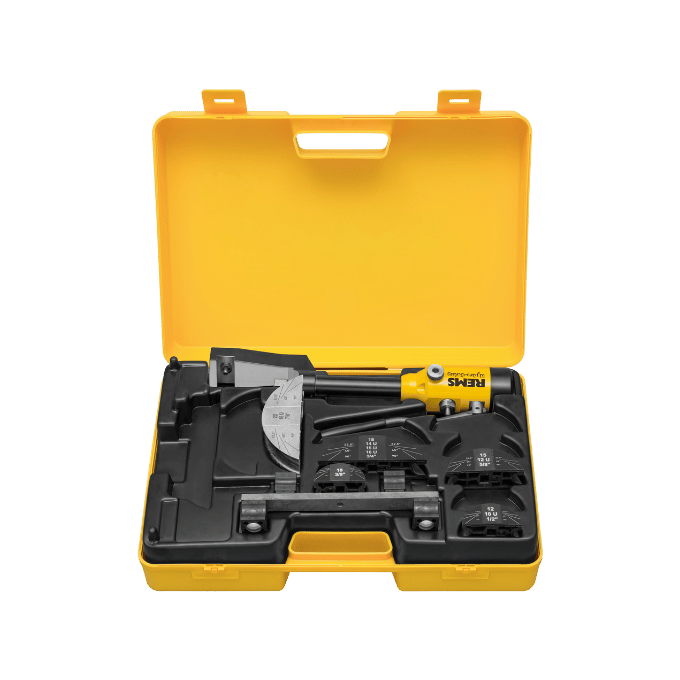

Includes bending former sizes 10–12–15–18–22 mm; 3/8"–7/8" (5), tool case.
2.4kg
153528
Allround 32
Includes bending former sizes 10–12–14–18–20–22–25/26–32 mm; 3/8"–7/8" (11), tool case.
2.4kg
140120
Bending spray, 400 ml
0.25kg

Product Details

Materials
Applicable Materials
Suitable for soft copper pipes, coated copper pipes, thin-wall stainless steel pipes, precision mild steel tubes, and multi-layer composite pipes.
Soft copper pipe
3/8"–7/8"（10–22 mm）, wall thickness ≤ 1 mm
Coated soft copper pipe
3/8"–5/8"（10–18 mm）, wall thickness ≤ 1 mm
Thin-wall stainless / coated carbon steel pipe
12–18 mm, wall thickness ≤ 1.2 mm
Precision mild steel tube
10–22 mm, wall thickness ≤ 1.5 mm
Multi-layer composite pipe
14–32 mm
Multi-Material Field Bending
Suitable for common HVAC, sanitary, heating, and refrigeration piping materials, supporting stable bending work on site.

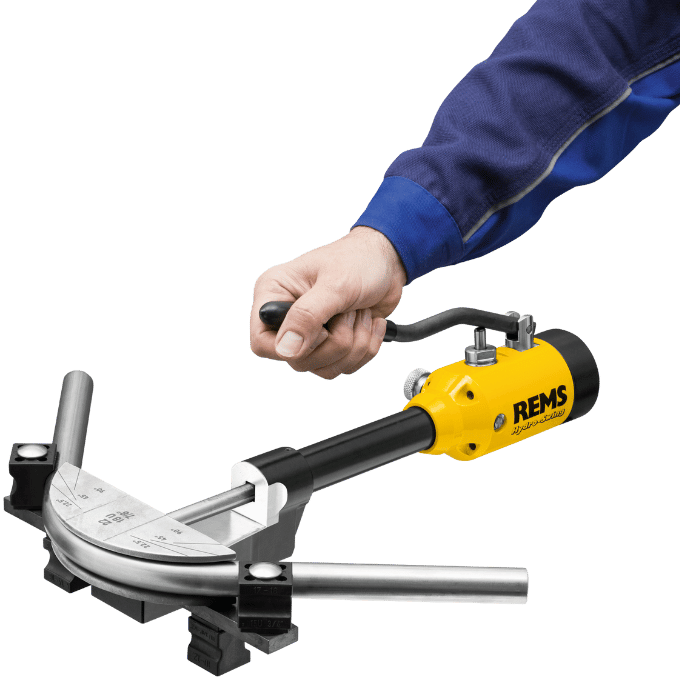

REMS Hydro-Swing hand pipe bending tool material application image

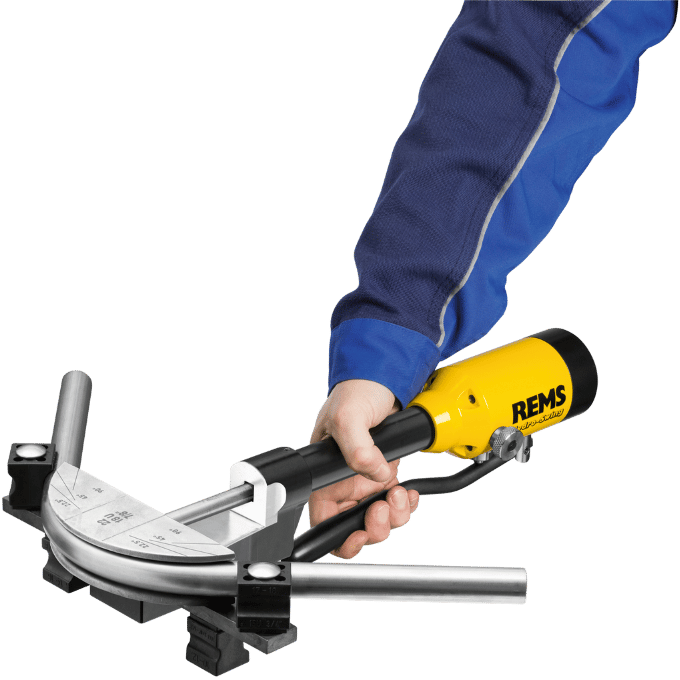

REMS Hydro-Swing hand pipe bending tool application image
Applications
Applications
Suitable for sanitary, heating, air-conditioning, refrigeration, and industrial applications where on-site bending is required.
Sanitary, Heating and HVAC Piping
Suitable for pipe installation and maintenance in sanitary systems, heating systems, air-conditioning piping, and refrigeration systems.
Industrial Applications
Suitable for bending various metal and plastic pipes, improving flexibility and efficiency for field operation.
