Flaring-Tool-CH806A

KS_flaring_tool_CH806A
Taiwan
KS
806A

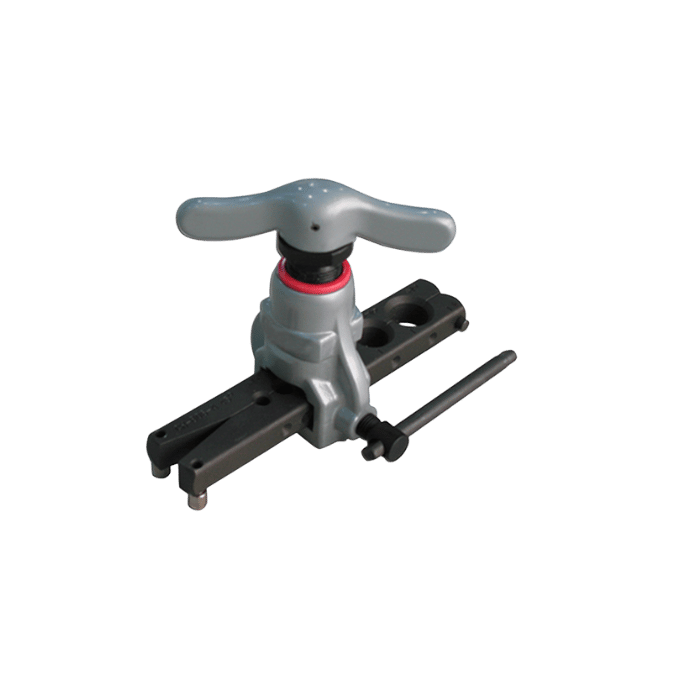

Flaring Tool

Suitable for aluminum, soft copper, and hard copper pipes from 1/4"–3/4"｜45° precision flaring｜Eccentric cone design｜Low-effort rolling expansion.
Creates smooth, even flares with reduced pipe wall damage, ideal for air-conditioning, refrigeration, and piping work.
Product Features
  • 45° Precision Flaring: Creates standard 45° flares for air-conditioning and piping applications.
  • Multi-Material Application: Suitable for aluminum, soft copper, and hard copper pipes.
  • Eccentric Cone Design: Handle rotation provides smooth forward movement with low operating effort.
  • Even Rolling Formation: Produces uniform flares while reducing the risk of pipe wall scratches and deformation.
  • Automatic Free-Rotation Protection: Automatically releases into free rotation after flaring is completed to prevent pipe damage.
Add to Inquiry
Tags
Show
＃Annealed Brass Tube ＃5/8" ＃1/4" ＃3/8" ＃Soft & Hard Copper Tubes ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
CH806A
CH-806A
1/4"–3/4", 45°
1.6kg
CH806A1
CH-806A1
1/4"–3/4", 45° for new refrigerants.
1.6kg

Product Details

Technical Data
Product Specifications
45° flaring tool for aluminium tubes, soft copper tubes, and hard copper tubes. The eccentric cone design helps produce uniform flares with less effort.
Applicable materials
Aluminium, soft copper, hard copper
Flaring angle
45° flare
Forming method
Eccentric cone rolling formation
Operation method
Turn the handle to advance downward
Protection design
Automatically releases and idles after completion to prevent tube damage
Flaring result
Uniform flare, even wall thickness, reduced surface damage
Eccentric Cone 45° Flaring
The eccentric cone design creates a rolling action that forms a uniform flare with minimal effort. It helps keep the tube wall even and reduces scratching. Once the flare is completed, the tool automatically releases into idle rotation to help prevent tube damage.
Features
Product Features
Designed for low-effort operation, uniform flare formation, and tube protection in air conditioning, refrigeration, and piping installation work.
Eccentric Cone Design
Uses eccentric cone rolling action to create more uniform flares with less operating effort.
45° Flare Formation
Designed for standard 45° flare formation on refrigerant piping and thin-wall metal tubing.
Even Tube Wall, Less Scratching
Rolling formation distributes force evenly, helping reduce scratching, deformation, and uneven flare results.
Low-Effort Operation
Simply turn the handle to advance the cone downward and generate a stable rolling effect with minimal force.
Automatic Idle Protection
After forming is completed, the tool automatically releases and idles to help prevent overloading or tube damage.
Simple and Intuitive Use
Easy to operate for quick flare preparation during field installation and repair work.
Applications
Applications
Suitable for 45° flare formation on aluminium, soft copper, and hard copper tubes, widely used in refrigerant piping, refrigeration equipment, HVAC systems, and field pipe installation.
Air Conditioning Refrigerant Piping
Suitable for 45° flare preparation on refrigerant copper tubes before connection work.
Refrigeration and HVAC Equipment
Suitable for flare forming on thin-wall metal tubes used in refrigeration equipment and HVAC systems.
Field Installation and Repair
Suitable for maintenance, modification, and on-site pipe installation requiring fast and consistent tube-end flaring.
