REMS-Pipe-Freezer-Eskimo

REMS_pipe_freezer_eskimo_130002
Germany
REMS
Eskimo

Pipe Freezer

Suitable for pipe sizes 1/8"–2"｜Freezing temperature down to –79°C｜Eco-friendly CO₂ refrigerant｜Approx. 5-minute fast pipe freezing｜No need to fully drain the pipe.
Quickly forms an ice plug for pipe isolation, ideal for maintenance, repair, and jobsite applications on various pipe materials.
Product Features
  • Eco-Friendly CO₂ Refrigerant: Uses carbon dioxide as the refrigerant, CFC-free, non-toxic, and non-flammable.
  • Efficient Pipe Freezing: Rapidly lowers pipe temperature to form an ice plug for repair work.
  • No Full Draining Required: Pipe water does not need to be completely drained, saving preparation time.
  • Fast Freezing Performance: Freezes a 3/4" steel pipe in approx. 5 minutes.
  • Precise Localized Freezing: Concentrated freezing area helps reduce over-freezing and pipe damage risk.
  • Simple and Fast Operation: Automatic refrigerant feed system reduces operation steps for easier jobsite use.
Add to Inquiry
Tags
Show
＃Corded ＃HVAC Tools ＃2" ＃1 1/4" ＃5/8" ＃1/4" ＃1 1/2" ＃Composite Pipe ＃3/8" ＃1" ＃1/8" ＃3/4" ＃1/2" ＃Plastic Pipe ＃Galvanized Steel Pipe ＃Annealed Brass Tube ＃Stainless Steel Tube ＃Soft & Hard Copper Tubes

Model Specifications

SKU
Model
Description
Weight
Remarks
130002
Eskimo

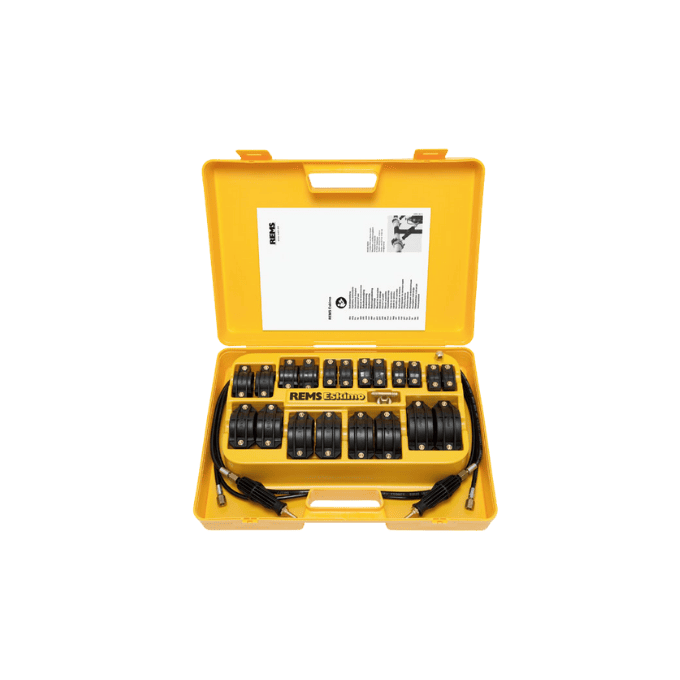

10 pairs of freezing collars, bottle connector with T-distributor. Closing nuts, 2 handles, injector, 2 high-pressure hoses, and carrying case.
6 kg

Product Details

Technical Data
Product Specifications
REMS Eskimo is a pipe freezing tool using carbon dioxide (CO₂) as the refrigerant. It quickly freezes the water inside the pipe, making it suitable for pipe repair, partial installation work, and service situations where draining the pipe is difficult.
Pipe size range
1/8" ~ 2" (10 ~ 60 mm)
Applicable materials
Steel, cast iron, lead, copper, plastic and composite pipes
Refrigerant
Carbon dioxide (CO₂), CFC-free
Freezing capacity
Down to -79°C (-110°F)
Freezing time
Approx. 5 minutes for 3/4" steel pipe
Fast Pipe Freezing with Less Draining and Downtime
By creating a local ice plug inside the pipe, repair or connection work can be carried out without fully draining the pipeline, making it especially useful for fast on-site service work.

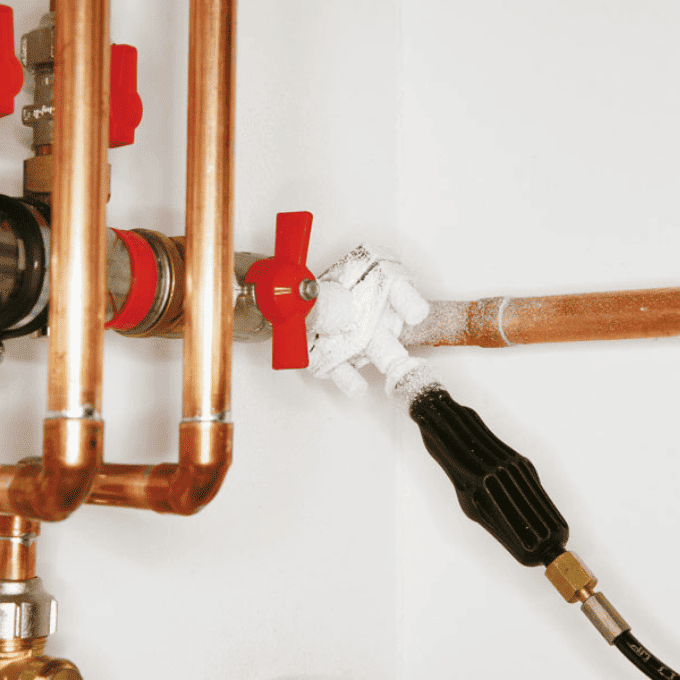

REMS Eskimo pipe freezer
Features
Product Features
Designed around fast freezing, environmentally friendly refrigerant, and wide pipe material compatibility for HVAC, refrigeration, heating, and industrial piping service work.
CO₂ Eco-Friendly Refrigerant
Uses carbon dioxide as the refrigerant. CFC-free, non-toxic, and non-flammable for professional pipe freezing applications.
Fast Freezing Ice Plug
Quickly freezes the water inside the pipe to create an ice plug, shortening waiting time and improving repair efficiency.
Wide Pipe Material Compatibility
Suitable for steel, cast iron, lead, copper, plastic, and composite pipes, covering a broad range of applications.
Ideal for Local Repairs
Suitable for local repair, modification, and connection work, helping reduce large-scale draining and downtime costs.
Applications
Applications
Widely used for pipe repair, refrigeration system installation and service, HVAC engineering, and industrial piping maintenance, especially where fast pipe freezing is required before repair or connection work.
Pipe Repair
Suitable for local pipeline repairs, allowing work to be carried out without fully draining the pipe.
HVAC and Refrigeration Equipment
Suitable for pipe repair, installation, and adjustment work in air conditioning, refrigeration, and heating systems.
Industrial Piping
Can be used for industrial piping maintenance, especially where fast local pipe freezing and connection work are required.
Confined Work Areas
Suitable for sites where long draining work is inconvenient or where space is limited, improving repair flexibility and efficiency.

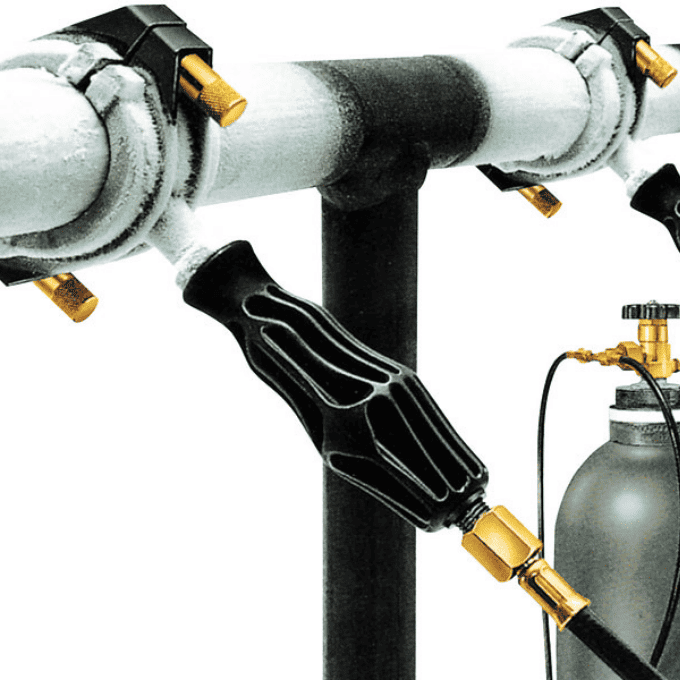

REMS Eskimo pipe freezing application
