GENERAL-CO2-Pipe-Freezing-Kits-7050

General_pipe_freeze_kit_CST2_118020
U.S.A.
General Pipe
7050

CO2 Pipe Freezing Kits

Suitable for pipe sizes 1/4"–2"｜Dry ice pipe freezing｜No need to shut down the entire piping system｜CFC-free eco-friendly design｜Suitable for steel, copper, and plastic pipes.
Quickly freezes water inside the pipe for localized repair and maintenance, improving jobsite efficiency.
Product Features
  • Fast Local Pipe Isolation: Freezes water flow locally, allowing repair work without shutting down the entire system.
  • Dry Ice Freezing Technology: One-piece injection nozzle distributes dry ice evenly around the pipe for better freezing efficiency.
  • CFC-Free Design: Environmentally friendly and free from CFCs.
  • Dedicated Freezing Jacket: Special jacket forms a natural freezing pocket, allowing dry ice to surround the pipe and freeze the water underneath.
  • T-Connector Valve: Makes freezing jacket removal easier and improves operation convenience.
  • Heavy Nylon Cord Fixing: Secures the jacket tightly around the pipe for stable freezing performance.
  • Multi-Pipe Application: Suitable for steel, copper, and plastic pipes; plastic pipes require approximately three times longer freezing time.
Add to Inquiry
Tags
Show
＃Composite Pipe ＃1 3/8" ＃1 5/8" ＃1 1/8" ＃1 1/4" ＃1/4" ＃Annealed Brass Tube ＃Plastic Pipe ＃1 1/2" ＃5/8" ＃Galvanized Steel Pipe ＃3/8" ＃2" ＃1" ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube ＃3/4" ＃1/2"

Model Specifications

SKU
Model
Description
Weight
Remarks
7050
7050

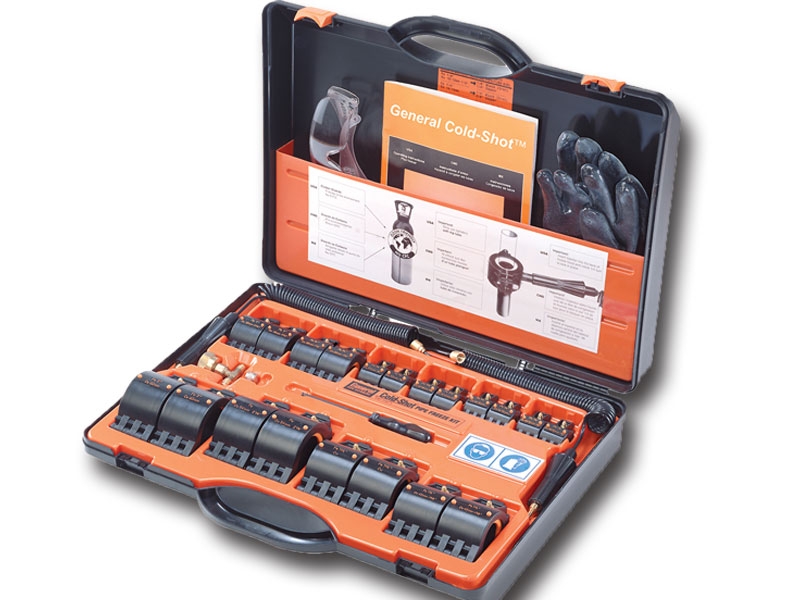

1/4"–3/4" and 1"–2" freezing jackets, 2 pcs each; High-pressure hoses, 2 pcs; Heat barrier paste, 1 can; Gloves, 1 pair; Tool case, 1 pc
5.5 kg

Product Details

Technical Data
Product Capacity
Dry-ice pipe freezing kit for residential and commercial water pipe service work. It allows localized water flow stoppage for maintenance, repair, or modification without shutting down the entire system.
Pipe size range
1/4" ~ 2"
Operating condition
Water flow must be stopped; do not attempt to freeze hot water
Recommended ambient temperature
Approx. 21°C
1/4" ~ 3/4" pipes
Freezing time approx. 11 minutes
1" ~ 2" pipes
Freezing time approx. 18 ~ 40 minutes
Applicable materials
Steel, cast iron, lead, copper, plastic and composite pipes
Water Flow Must Be Stopped Before Freezing
Pipe freezing performance depends on still water, pipe material, pipe size, and ambient temperature. Plastic pipes require approximately three times longer freezing time due to lower thermal conductivity.
Features
Product Features
Designed around localized water stoppage, CFC-free operation, even dry-ice distribution, and stable jacket wrapping for residential and commercial pipe service work.
No Need to Shut Down the Entire System
Allows localized water flow stoppage during residential and commercial pipe maintenance, reducing large-scale water shutdown impact.
CFC-Free and Environmentally Friendly
The freezing method is CFC-free and environmentally friendly, suitable for worksites with environmental considerations.
One-Piece Jet Nozzle
Helps distribute dry ice evenly around the pipe, improving freezing efficiency beneath the freezing jacket.
Special Jacket Forms a Natural Pocket
The jacket design forms a natural pocket that allows dry ice to be fully injected and wrapped around the pipe to help form a stable ice plug.
T-Connection Valve
The T-connection valve makes it easier to remove the freezing jacket, improving on-site operating convenience.
Heavy-Duty Nylon Cord
Securely wraps the jacket around the pipe, improving stability and reducing loosening during the freezing process.
Applications
Applications
Suitable for residential, commercial, and general pipe service work where localized water flow stoppage is required and shutting down the entire system is inconvenient.
Residential Pipe Repair
Suitable for residential pipe maintenance, local modification, and small repair work while reducing the need to shut down the entire home or area.
Commercial Pipe Maintenance
Can be used for commercial building pipe maintenance, helping reduce operational disruption during repair work.
Localized Water Stoppage
Suitable for valve replacement, pipe connection, repair, and local modification where temporary water flow stoppage is needed.
