GENERAL Autofeed-Drum-type-Drain-CleanerL-XP

U.S.A.
General Pipe
XP

Autofeed Drum type Drain Cleaner

Suitable for 1"–4" drain lines|Up to 100' inner-core cable|Weight 30 kg|Automatic cable feed and retrieval|Variable speed control|8" semi-pneumatic wheels.
Portable and easy to move, ideal for fast drain cleaning and routine maintenance in residential, commercial, and industrial applications.

Product Features
  • Lightweight and Portable Design: Approx. 30 kg body with 8" semi-pneumatic wheels for easy jobsite mobility.
  • Folding Handle: Handle folds and locks for easier transport and storage.
  • Automatic Cable Feed: Feeds and retrieves cable automatically to improve cleaning efficiency.
  • Variable Speed Control: Cable feed speed can be adjusted according to blockage conditions.
  • Quick Cable Adjustment: Quickly switches between 3/8" and 1/2" cables for different drain sizes.
  • Inner-Core Cable: Provides strength and flexibility, compatible with MR, MRXP, T3, K3800, and related models.
Tags
Show
#4" #1"

Model Specifications

SKU
Model
Description
Weight
Remarks
111970
PXPB
120V / 60Hz, 1/3 HP, with automatic feed and retract and pneumatic foot pedal, equipped with 10' power cord and ground fault circuit interrupter (GFCI); Cable: one 3/8" × 75' solid-core cable; Included: MRCS tool set and cart.
41.8kg

Product Details

Technical Data
Product Specifications
Mini-Rooter XP is a professional drum-type drain cleaning machine suitable for 1"–4" drain lines. With automatic cable feed and retract control and an integrated inner drum cage design, it helps reduce cable tangling risk and is suitable for residential, commercial, and general drainage system cleaning work.
Cleaning Capacity
Suitable for 1"–4" drain lines
Dimensions
61 × 46 × 96 cm
Weight
30 kg
Inner Drum Cage
Helps prevent cable tangling
Variable Speed Control
Automatically controls cable feed and retract; quickly adjusts 3/8" and 1/2" cables
Drum-Type Design Built for Field Drain Cleaning

With automatic cable feed control and multiple cable size options, the machine can be adjusted according to pipe diameter and blockage conditions, improving cleaning efficiency and operating stability.

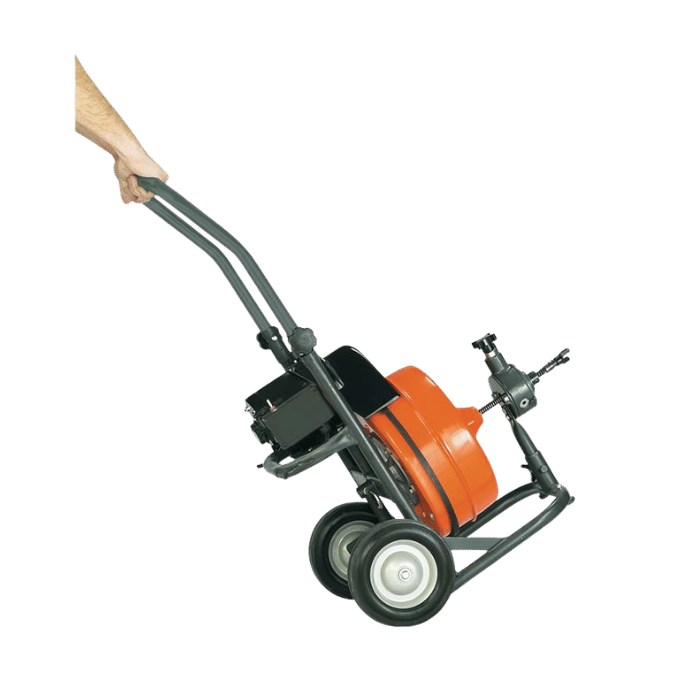

Mini-Rooter XP Drum-Type Drain Cleaning Machine
Cable Capacity
Cable Application Range
Different cables can be selected according to pipe diameter and cleaning distance, balancing flexibility for smaller lines with cleaning capacity for larger drain lines.
1/2" Cable
For 3"–4" drain lines, up to 100' m
3/8" Cable
For 2"–3" drain lines, up to 100' m
1/4" or 5/16" Cable
For 1 1/4"–2" drain lines
Features
Product Features
Built around automatic cable feed and retract, reduced cable tangling, multi-size cable support, and field mobility, this machine is suitable for professional drain cleaning work.
Automatic Cable Feed and Retract

Variable speed control automatically feeds and retracts the cable, improving cleaning efficiency and jobsite convenience.

Reduced Cable Tangling

The integrated inner drum cage helps reduce cable tangling risk and supports smoother operation.

Multiple Cable Size Support

Can be used with 1/4", 5/16", 3/8", or 1/2" cables depending on pipe size requirements.

Suitable for Multiple Drain Cleaning Scenarios

Suitable for residential, commercial, and general drainage systems, including sinks, toilets, shower drains, and bathroom lines.

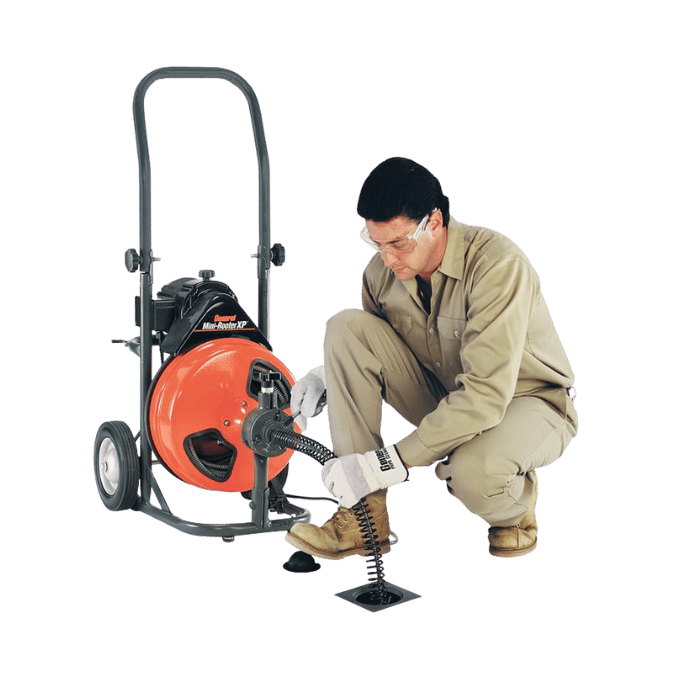

Mini-Rooter XP Application
Applications
Applications
Suitable for residential, commercial, and industrial drainage systems, especially for cleaning sinks, toilets, shower drains, bathrooms, and multi-floor drain lines.
Residential Drain Systems

Suitable for cleaning common household drains such as sinks, toilets, shower drains, and bathroom lines.

Commercial Facility Maintenance

Can be used for routine drain maintenance and blockage removal in commercial spaces and public facilities.

Multi-Floor Drain Cleaning

Suitable for cleaning drain lines from rooftop to lower floors, improving drainage maintenance efficiency.

Professional Drain Cleaning

Different cable sizes can be selected according to pipe diameter and blockage severity, meeting a wide range of field cleaning needs.

Cable & Cutters
Cable and Cutter Accessories
Choose the proper cables and cutter heads according to cleaning distance, pipe diameter, and blockage type. Cutter heads are displayed as image cards for quick identification.
Cable Models
121020|25EM2

3/8" × 25' inner-core cable

121030|50EM2

3/8" × 50' inner-core cable

121040|75EM2

3/8" × 75' inner-core cable

121050|100EM2

3/8" × 100' inner-core cable

121060|25EM3

1/2" × 25' inner-core cable

121070|50EM3

1/2" × 50' inner-core cable

121080|75EM3

1/2" × 75' inner-core cable

121090|100EM3

1/2" × 100' inner-core cable

Cutter Accessories
BG Bulb Auger
130130|BG

Bulb Auger

112UC U-Cutter
130420|112UC

1½" U-Cutter

AH Arrow Cutter
130110|AH

Arrow Cutter

2SCB Side Cutter
130170、130180、130190
|2SCB、3SCB、4SCB

2", 3", 4" Side Cutter

3RSB Spiral Sawtooth Cutter
130210|3RSB

3" Spiral Sawtooth Cutter

RTR1 Retrieving Auger
130360|RTR1

Retrieving Auger

LE1 Leader Tube
130340|LE1

13" Leader Tube

FAH Spring Arrow Cutter
130120|FAH

Spring Arrow Cutter

DHBG Drop Head Auger
130140|DHBG

Drop Head Auger

DHF Drop Head Adapter
130150|DHF

Drop Head Adapter

Video
Product Video
Watch the operation video to understand how Mini-Rooter XP works in real drain cleaning applications.
