Manual-Lever-Bender-300-400-series

Imperial_400S
Imperial_300S
Taiwan
KS
300/400 系列

Manual Lever Bender

Suitable for copper, steel, and thin-wall stainless steel tubes from 3/16"–1 1/2". Features a 90° starting angle, offset handle design, and imperial / metric dual scale.
Low-effort and accurate bending with reduced hand impact risk during 180° bends, ideal for jobsite installation and maintenance.
Product Features
  • 400 Series Instrument Tube Bender: Suitable for copper, steel, and thin-wall stainless steel tubes, offering accurate and easy operation.
  • Offset Handle Design: Helps reduce knuckle impact and injury risk during 180° bending.
  • 90° Starting Angle: Works with a special oil-absorbing shoe to minimize bending effort.
  • Imperial / Metric Dual Scale: Makes angle reading and jobsite operation easier across different tube sizes.
  • 300 Series Copper Tube Bender: Designed for copper tube bending only.
Add to Inquiry
Tags
Show
＃5/16" ＃3/16" ＃Annealed Brass Tube ＃1/4" ＃3/8" ＃5/8" ＃1 1/2" ＃Soft & Hard Copper Tubes ＃Stainless Steel Tube ＃3/4"

Model Specifications

SKU
Model
Description
Weight
Remarks
36117
403
Outer diameter 3/16"
0.86 kg
36122
404
Outer diameter 1/4"
0.86 kg
*36092*
405
Outer diameter 5/16"
1.18kg
36097
406
Outer diameter 3/8"
1.18 kg
36132
408
Outer diameter 1 1/2"
2.45 kg
*36962*
310
Outer diameter 5/8"
2.86 kg
36972
312
Outer diameter 3/4"
3.13 kg
36112
406M
Outer diameter 6 mm; bending radius 16 mm
0.68 kg
*36092*
408M
Outer diameter 8 mm; bending radius 24 mm
1.18 kg
36102
410M
Outer diameter 10 mm; bending radius 24 mm
1.18 kg
36127
412M
Outer diameter 12 mm; bending radius 38 mm
2.45 kg

Note: This size is dual-scale and can be used with both metric and imperial measurements.

Product Details

Features
Product Features
Designed with different series options for instrument-grade thin-wall tube bending and copper tube bending applications.

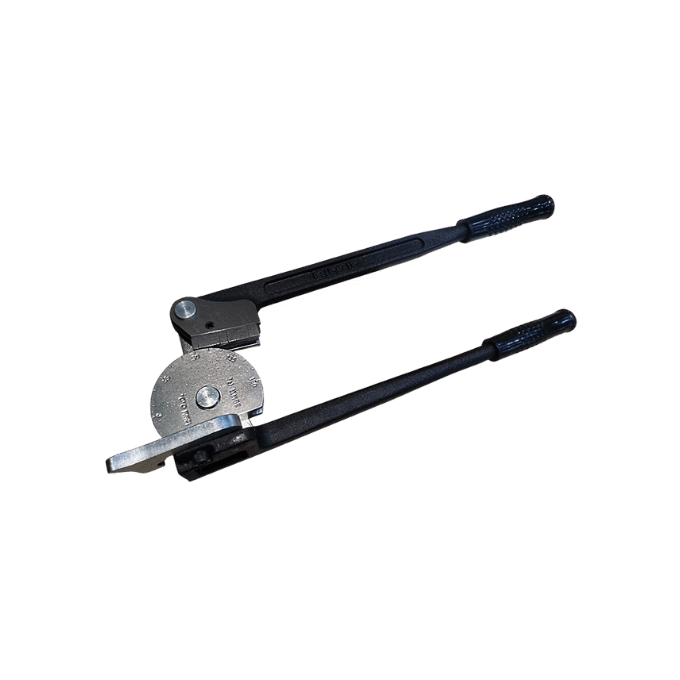

400 Series
400 Series
Instrument-Grade Thin-Wall Tube Bender
Suitable for copper, steel, and thin-wall stainless steel tubes, providing accurate and easy operation for stable bending quality on site.
Reduced Effort and Safer Handling
Offset cushioned handles help protect knuckles during 180° bends. The 90° starting angle and specially engineered oil-absorbing shoe help minimize bending effort.

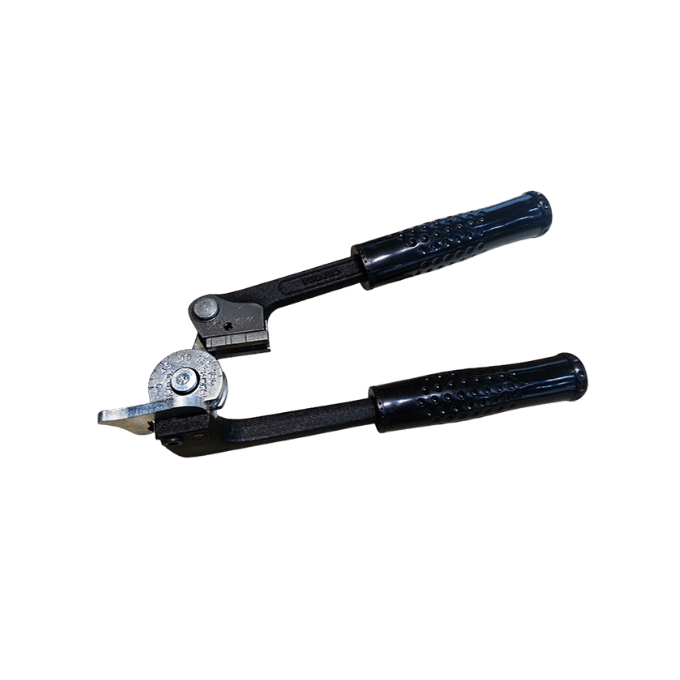

300 Series
300 Series
Copper Tube Bender
Designed specifically for copper tube bending and intended only for copper tube applications.
Note: This size is dual-scale and can be used with both metric and imperial measurements.
