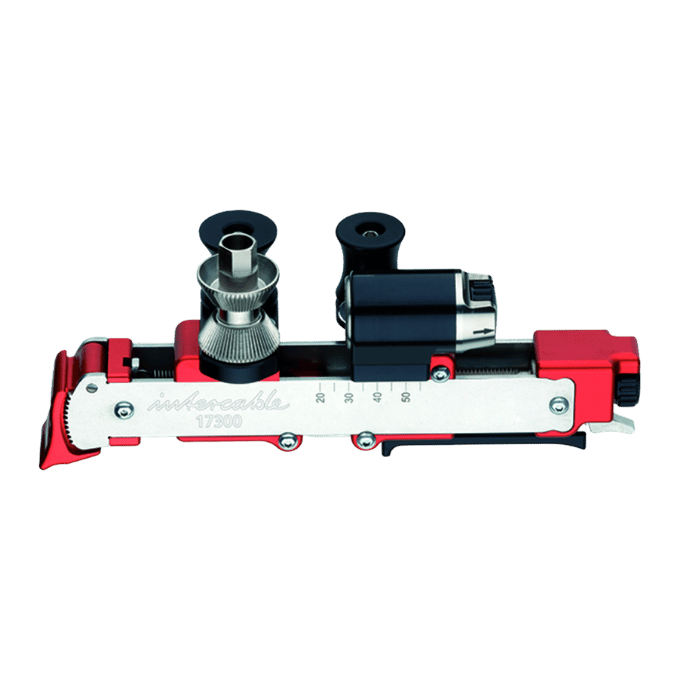

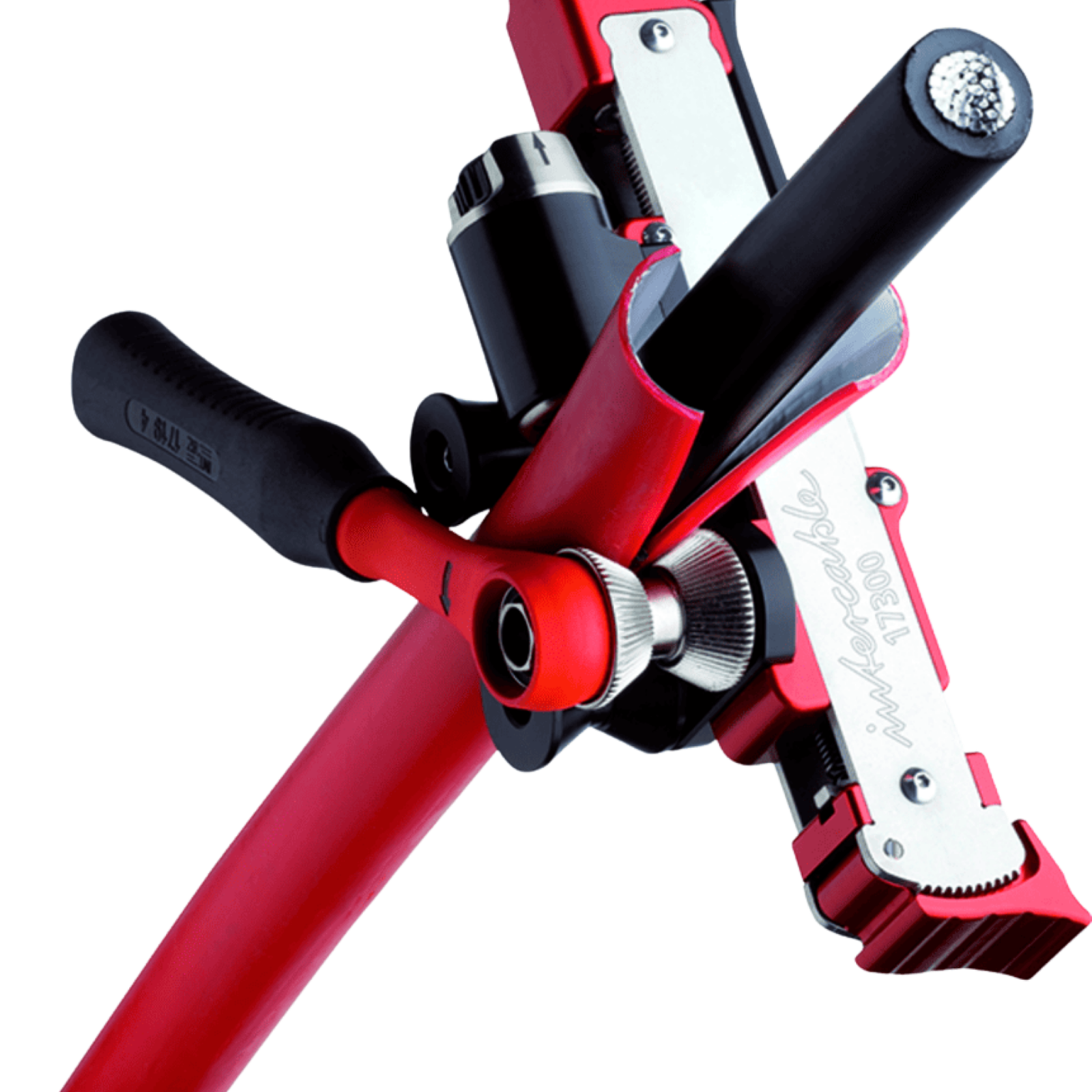

AMX Universal Cable Stripper with quick-release system

Suitable for removing outer sheaths from Ø16–54 mm low-voltage and medium-voltage aluminum-armoured cables. Ideal for PE and fully bonded cable structures. Supports longitudinal and circular cutting with fine cutting-depth adjustment in 0.1 mm increments.

Product Features

For LV / MV Aluminum-Armoured Cables: Designed for outer sheath removal on Ø16–54 mm low- and medium-voltage aluminum-armoured cables.
Longitudinal and Circular Cutting: Easily switches between longitudinal and circular cutting for different stripping needs.
Breaking Claw Design: Helps break through hard or highly bonded outer insulation materials.
Quick-Lock Fixing System: Eccentric quick-release lever allows fast attachment and removal for better jobsite efficiency.
0.1 mm Fine Depth Adjustment: Cutting depth can be adjusted in fine increments to reduce the risk of damaging inner layers.
Quick Cable Diameter Setup: Handle adjustment allows correct initial setting for the cable diameter.
PE / Fully Bonded Material Application: Suitable for polyethylene and fully bonded insulation structures.
300 mm Maximum Rotation Diameter: Useful for assessing working space during cable stripping operations.

Add to Inquiry

Model Specifications

Product Details

Technical Data

Designed for stripping the outer sheath of low-voltage and medium-voltage aluminium-armoured cables. Supports both longitudinal and circular cutting, and is suitable for polyethylene and fully bonded insulation materials.

Applicable Diameter Range

Ø 16–54 mm

Insulation Thickness / Stripping Depth

0–5 mm

Applicable Materials

Polyethylene / Fully bonded insulation

Applicable Cables

LV / MV low-voltage and medium-voltage aluminium-armoured outer sheath cables

Cutting Methods

Longitudinal cutting, circular cutting

Cutting Depth Adjustment

Available

Cutting Depth Adjustment Precision

0.1 mm per step

Initial Cable Diameter Setting

Adjusted by handle

Fixing System

Quick-release system with toggle-lever principle

Longitudinal / Circular Cutting Switch

Available

Maximum Tool Rotation Diameter

300 mm

Designed for LV / MV aluminium-armoured cable outer sheaths

Supports switching between longitudinal and circular cutting, with fine cutting-depth adjustment in 0.1 mm steps. Suitable for cable stripping work that requires stable handling and high precision.

Features

Quick-release fixing system, fine depth adjustment, and multi-mode cutting design improve stripping efficiency and operational stability when working with aluminium-armoured cable outer sheaths.

Longitudinal and circular cutting

Switches between longitudinal and circular cutting to support different jobsite methods and outer-sheath opening requirements.

Additional hook claw design

Equipped with an additional hook claw for breaking hard insulation layers and improving handling capability for special materials.

Quick initial setting by handle

Allows quick initial adjustment to the correct cable diameter through the handle, improving on-site setup efficiency.

Quick-release fixing system

Uses a quick-release system with toggle-lever principle for faster and more stable installation and removal.

Fine 0.1 mm depth adjustment

Adjustable cutting depth with 0.1 mm step control for higher stripping precision.

Suitable for special insulation materials

Suitable for polyethylene and fully bonded insulation materials, with a maximum tool rotation diameter of 300 mm.

Applications

Suitable for stripping LV and MV cable outer sheaths, aluminium-armoured outer sheaths, and hard insulation layers, with support for longitudinal or circular cutting operations.
