Intercable IMS-II-Universal-Cable-Stripper

IMS II - Universal Cable Stripper for Primary Insultaion
Italy
Intercable
17230

IMS II Universal Cable Stripper for Primary Insultaion

Designed for removing the main insulation layer from 6–45kV medium- and high-voltage cables. Suitable for Ø15–52 mm cables. Supports spiral and circular cutting, with adjustable cutting depth from 0–15 mm and unlimited stripping length.
Product Features
  • 6–45kV Cable Application: Designed for removing the main insulation layer from medium- and high-voltage cables.
  • Multi-Insulation Material Use: Suitable for various main insulation materials across different cable applications.
  • Spiral and Circular Cutting: Supports spiral and circular cutting for different stripping requirements.
  • Axial Feed Control: Axial feed can be enabled or disabled via the knob for greater operating flexibility.
  • Secure Positioning Design: Vise-like fixing method allows stable positioning on the cable.
  • Unlimited Stripping Length: Suitable for cable-end stripping and longer stripping distances.
  • Adjustable Cutting Depth: Cutting depth can be adjusted from 0–15 mm according to insulation thickness.
  • Replaceable Blade: Easy maintenance and extended tool service life.
  • 220 mm Maximum Rotation Diameter: Useful for assessing available working space on site.
  • Hard Case Set: Includes cable stripper, hex key, silicone grease, and hard resin tool case.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
17230
Universal Cable Stripper for Primary Insultaion

Product Details

Technical Data
Product Specifications
Model 17230 IMS II cable stripper for removing main insulation from 6–45kV cables, suitable for Ø 15–52 mm cables and 0–15 mm insulation thickness, supporting spiral and circumferential cutting.
Model
17230
Cable diameter range
Ø 15–52 mm
Insulation / stripping depth
0–15 mm
Applicable insulation type
All types of main insulation
Applicable cable
6–45kV cable
Cutting types
Spiral and circumferential cutting
Longitudinal cutting
No
Max. rotation diameter
220 mm
Axial feed control
Enabled / disabled by knob
Positioning method
Vise-like fixing system
Stripping position
Cable ends
Stripping length
Unlimited
Cutting depth
Adjustable
Blade
Replaceable blade
Main Insulation Stripping Tool for 6–45kV Cables
The vise-like fixing system holds the tool securely on the cable, while axial feed can be enabled or disabled by knob, making it suitable for longer-distance main insulation stripping with unlimited stripping length.
Kit Contents
Kit Contents
The kit includes the IMS II cable stripper, hex key, silicone grease, and a rigid resin tool case for field carrying, adjustment, and maintenance.

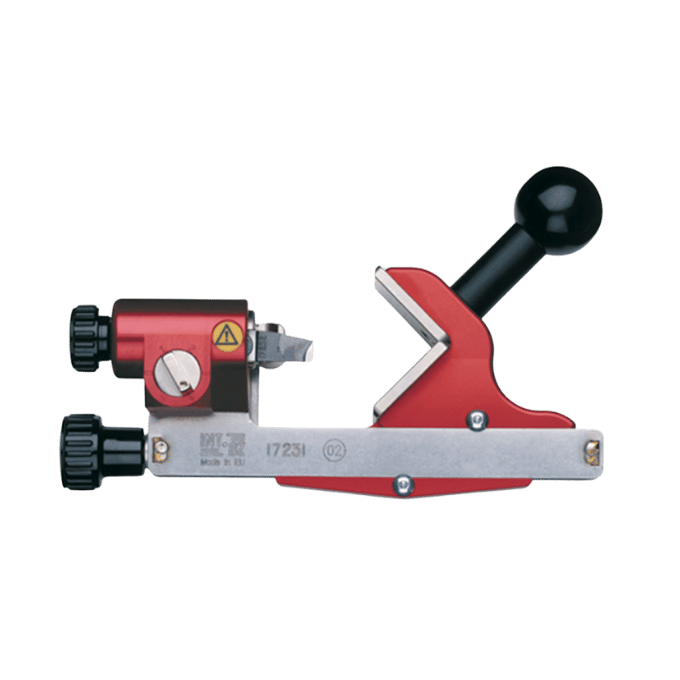

IMS II cable stripper
17231
2.5 mm hex key
17100
Silicone grease
AG1013
Rigid resin tool case
AB17230
Features
Product Features
Designed for removing main insulation from 6–45kV cables, with spiral / circumferential cutting, adjustable cutting depth, and axial feed control.
For 6–45kV Main Insulation
Suitable for removing main insulation from 6–45kV cables and compatible with all types of main insulation materials.
Spiral and Circumferential Cutting
Supports spiral and circumferential cutting to match different main insulation stripping methods and field requirements.
Controllable Axial Feed
Axial feed can be enabled or disabled by knob, allowing operation mode adjustment for different stripping methods.
Stable Vise-Like Positioning
Vise-like positioning secures the tool on the cable and helps reduce cutting deviation.
Unlimited Stripping Length
Suitable for stripping cable ends, with unlimited stripping length for longer-distance insulation removal work.
Adjustable Depth and Replaceable Blade
Adjustable cutting depth and replaceable blade support long-term field use and maintenance.
Applications
Applications
Suitable for removing main insulation from 6–45kV cables with Ø 15–52 mm cable diameter and 0–15 mm insulation thickness, especially for cable-end preparation requiring unlimited stripping length.
6–45kV Cable Main Insulation
Suitable for removing main insulation from 6–45kV cables across various main insulation materials.
Cable End Stripping
Suitable for cable end stripping on Ø 15–52 mm cables and 0–15 mm insulation thickness.
Unlimited-Length Stripping Work
Suitable for cable processing that requires unlimited stripping length, spiral cutting, or circumferential cutting.
