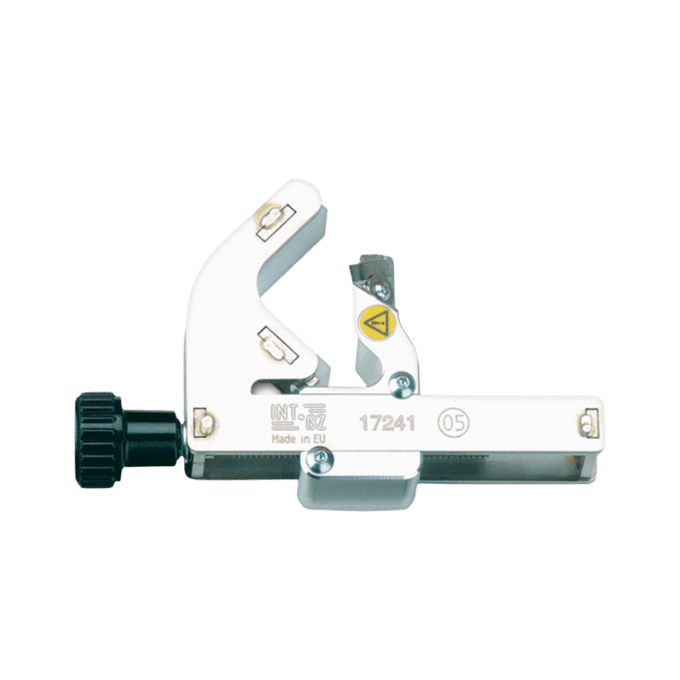

UFS Tool for Chamfering Primary Insulation

Designed for chamfering the main insulation layer of MV medium-voltage cables. Suitable for Ø15–60 mm cables. Provides standard 2 × 45° chamfering, adjustable cutting depth, and circular cutting.
Product Features
  • Main Insulation Chamfering: Designed for chamfer cutting on MV cable main insulation.
  • Standard 2 × 45° Chamfer: Creates a standard chamfer for smoother fitting of stress control components.
  • Multi-Insulation Material Use: Suitable for various main insulation materials.
  • Clamp-Type Secure Positioning: Stable fixing on the cable with a clamp-like positioning method.
  • PTFE Sliding Plate Design: Slides smoothly on the cable surface without requiring silicone grease.
  • Adjustable Cutting Depth: Chamfer cutting depth can be adjusted according to installation needs.
  • Replaceable Blade: Easy maintenance and suitable for repeated professional use.
  • Circular Cutting Support: Suitable for cable-end chamfering work.
  • 130 mm Maximum Rotation Diameter: Useful for assessing available working space on site.
  • Not for Pencil Chamfering: Not suitable for pencil-type insulation shaping.
Add to Inquiry
Tags
Show

Model Specifications

SKU
Model
Description
Weight
Remarks
17240
Tool for Chamfering Primary Insulation

Product Details

Technical Data
Product Specifications
Model 17240 UFS main insulation chamfering tool for MV cables, designed to create 2 × 45° chamfers on Ø 15–60 mm cable main insulation.
Model
17240
Cable diameter range
Ø 15–60 mm
Applicable insulation type
All types of main insulation
Applicable cable
MV medium-voltage cable
Processing method
Main insulation chamfering
Chamfer angle
2 × 45°
Positioning method
Clamp-like fixing system
Sliding structure
PTFE sliding plate, no silicone grease required
Max. rotation diameter
130 mm
Longitudinal cutting
No
Circumferential cutting
Yes
Spiral cutting
No
Cutting depth
Adjustable
Blade
Replaceable blade
Pencil-type sharpening
Not applicable
MV Cable Main Insulation Chamfering Tool
Designed for 2 × 45° chamfering of main insulation. The PTFE sliding plate allows smooth movement on the cable without silicone grease, making it suitable for MV cable-end chamfering work.
Kit Contents
Kit Contents
The kit includes the UFS main insulation chamfering tool, 2.5 mm hex key, and soft nylon tool pouch for field carrying, adjustment, and maintenance.
UFS main insulation chamfering tool
1724 1
2.5 mm hex key
1710 0
Soft nylon tool pouch
AB17130
Features
Product Features
Designed for MV cable main insulation chamfering, combining 2 × 45° chamfering, clamp-like positioning, PTFE sliding plate, and replaceable blade design.
Dedicated Main Insulation Chamfering
Designed for chamfering main insulation on MV cables and suitable for all types of main insulation materials.
2 × 45° Chamfering
Creates a 2 × 45° chamfer on the main insulation, suitable for standardized cable-end preparation.
Stable Clamp-Like Positioning
Clamp-like fixing system holds the tool securely on the cable and helps reduce deviation during chamfering.
PTFE Sliding Plate
PTFE sliding plate allows smooth movement on the cable without silicone grease.
Circumferential Cutting and Adjustable Depth
Supports circumferential cutting, adjustable cutting depth, and replaceable blade for long-term field use.
Not for Pencil-Type Sharpening
This tool is not intended for pencil-type sharpening; it is designed specifically for main insulation chamfering.
Applications
Applications
Suitable for Ø 15–60 mm MV cable main insulation preparation, especially where 2 × 45° chamfering and grease-free sliding operation are required.
MV Cable Main Insulation
Suitable for Ø 15–60 mm MV cable main insulation preparation across various main insulation materials.
2 × 45° Chamfering Work
Suitable for cable-end preparation requiring a standardized 2 × 45° main insulation chamfer.
Grease-Free Sliding Operation
Suitable for working environments where smooth sliding is required without silicone grease, using the PTFE sliding plate.
